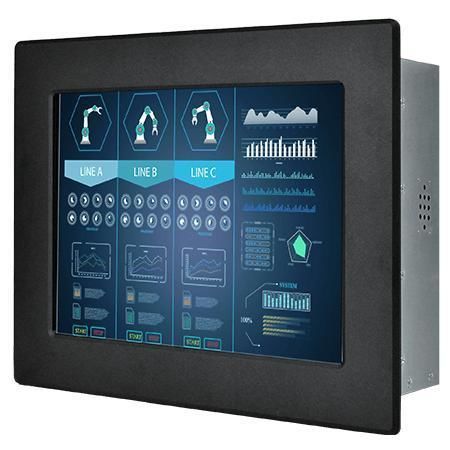

LCD monitor R10L100-IPT2HB

resistive touch screenindustrialfor displays

Overview
R10L100-IPT2HB is a 10.4-inch front IP65 high-brightness display designed for industrial and commercial use. The front panel is waterproof and dustproof (IP65) while the unit supports panel and VESA mounting and multiple video interfaces for easy system integration.

Key Features

• Display: 10.4 inches, 1024 x 768
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Mounting: Panel mount and VESA mount
• Front IP65 waterproof and dustproof sealing
• High brightness panel — 1000 nits

Product Highlights

• Front IP65 Design — Front-side rated IP65 to resist water and dust when correctly installed in an enclosure or customer fixture.
• Touch and Surface Options — Optional resistive touchscreen for interactive use or protection glass without touch when touch is not required.
• Multiple Signal Interfaces — Standard VGA with optional HDMI and DVI for flexible connection to embedded boards and systems.
• Easy Installation — Front bezel includes a rear rubber O-ring for sealing against customer fixtures; suitable for cabinet or rack integration.
• Outdoor-Ready Readability — Optical bonding of anti-reflective protective glass reduces reflections and improves readability under direct sunlight; supports continuous 24/7 operation.

Certifications

• CE
• FCC

Accessories

• Included: 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: Remote controller (varies by product)

Technical specifications

• Model: R10L100-IPT2HB
• Display size: 10.4 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Resolution: 1024 x 768
• Panel brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angles: 88, 88, 88, 88
• Display colors: 16.2M Colors
• Active area: 210.4 x 157.8 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB: 1 x USB for touch screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimensions: 284 x 234 x 43 mm
• Cut out: 264 x 216 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling system: Fanless design
• Power rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
