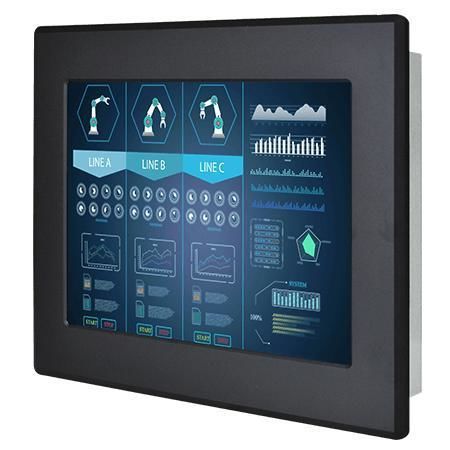

Resistive touch screen monitor R15L100-IPA3WT

5-wire resistive touch screen15"1024 x 768

Key features

• 15.0-inch, 1024 x 768
• VGA (default) and HDMI input
• Panel mount and VESA mount options
• Front-side IP65 waterproof and dustproof
• Wide operating temperature: -20°C to 60°C

Overview
Winmate R15L100-IPA3WT is a 15-inch front IP65 wide temperature display designed for wet, dusty and temperature-variable industrial and commercial environments. The front bezel meets IP65 to prevent water and dust ingress while maintaining a narrow-bezel form factor suitable for panel integration.

Surface and touch options
The display offers flexible surface configurations to meet application requirements: default 5-wire resistive touch, optional protection glass without touch, and optional SAW touch. A USB port is provided for touch connectivity.

Signal interfaces and integration
Standard signal input is VGA; HDMI is available as an option and DVI can be supplied depending on configuration. The display supports typical industrial integration via panel mount or VESA fixtures and includes required I/O for touch and optional audio.

Installation and sealing
The front bezel includes a rubber O-ring and sealing features to ensure a tight front-side seal against a customer fixture, simplifying installation into cabinets, racks or kiosks while maintaining the IP65 rating from the front.

Applications

• Outdoor and indoor kiosks (parking, gas stations, pool and spa kiosks)
• Factory automation HMI panels
• Ruggedized displays for wet or dusty commercial/industrial sites

Certifications

• CE
• FCC

Technical specifications

• Model: R15L100-IPA3WT
• Display - Size: 15.0 inches
• Display - Resolution: 1024 x 768
• Display - Panel Brightness: 500 nits
• Display - Contrast Ratio: 2500:1
• Display - View Angles: 88°/88°/88°/88°
• Display - Display Color: 16.7M Colors
• Display - Active Area: 304.1 x 228.1 mm
• Touch / Glass - Default: 5-wire Resistive Touch
• Touch / Glass - Optional: Protection Glass w/o Touch; SAW Touch
• Environment - Operating Humidity: 30% to 90% RH, Non-Condensing
• Environment - Operating Temperature: -20°C to 60°C
• Environment - Storage Temperature: -25°C to 65°C
• Certification: CE, FCC
• IO Ports - USB: 1 x USB for touch
• IO Ports - Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• IO Ports - Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Accessory (included): VGA cable; HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies)
• Optional Accessory: Remote Controller (varies by product)
• Power - Rating: 12V DC input (24V DC optional)
• Control - Buttons: 5 Keys: -, +, Power, Esc, Enter
