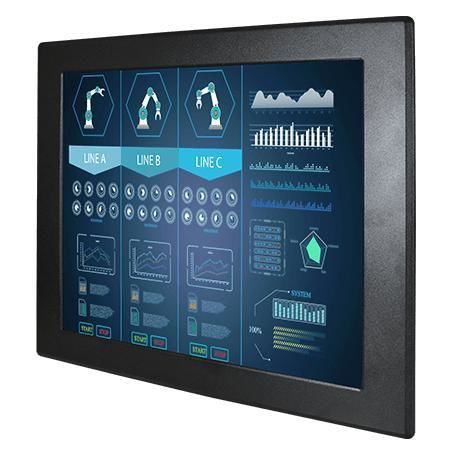

LCD monitor R19L300-IPM1

resistive touch screenwith touchscreenindustrial

Overview
The R19L300-IPM1 is a 19.0-inch front IP65 industrial display designed for wet and dusty environments. The IP65-rated front bezel and narrow-bezel design support integration in factory automation, outdoor kiosks, pool and spa kiosks and other industrial or commercial installations.

Key features

• 19.0 inches, 1280 x 1024
• VGA (standard) and HDMI (optional) video inputs
• Panel mount and VESA mount options
• Front bezel IP65 waterproof and dustproof
• Fanless metal enclosure with aluminum bezel

Design and sealing
The front bezel incorporates a rubber O‑ring seal to prevent ingress of water and dust when mounted to a customer enclosure. The display can be installed inside cabinets or racks and is suitable for outdoor deployment when correctly integrated.

Touch and surface options
Surface variants include resistive touchscreen (default), protection glass without touch (optional) and SAW touch (optional), allowing specification to application requirements.

Interfaces and installation
Multiple interfaces are provided for straightforward integration: VGA (default), HDMI and DVI (optional). Touch connectivity uses USB. Video, power and mounting options support embedded boards and industrial systems.

Certifications

• CE
• FCC

Technical specifications

• Model: R19L300-IPM1
• Display size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch (default); Protection Glass w/o touch (optional); SAW Touch (optional)
• Panel brightness: 250 nits
• Contrast ratio: 1000:1
• View angles: 85/85/80/80
• Display colors: 16.7M
• Active area: 376.32 x 301.06 mm
• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB port: 1 x USB for touch
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speakers optional
• Mechanical dimensions: 474 x 384 x 63 mm
• Cut out: 446 x 356 mm
• Weight: 6.7 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Accessories included: VGA cable; HDMI cable; 100–240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (optional, varies)
• Power rating: 12 V DC input (24 V DC optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
