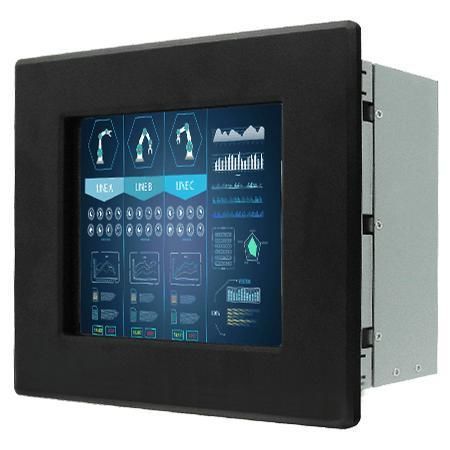

LCD monitor R08L200-IPU1

resistive touch screenindustrialoutdoor

Key Features

• 8.4 inches, 800 x 600
• VGA (default) and optional HDMI/DVI inputs
• Panel mount and VESA mount
• Front IP65 waterproof and dustproof
• Optional resistive touchscreen or protection glass

Overview
Winmate 8.4-inch Front IP65 Display R08L200-IPU1 is engineered for industrial and commercial installations where the front side requires reliable water and dust protection. The compact narrow-bezel design is suitable for embedded panels, outdoor kiosks and other environments exposed to moisture or airborne particles.

Waterproof Front IP65 Design
The front bezel is sealed to IP65 rating. A rubber O-ring on the rear of the bezel ensures a secure seal against the customer's enclosure to prevent ingress of water and dust when properly installed.

Touchscreen and Surface Options
The display supports an optional resistive touchscreen for interactive operation or protection glass when touch input is not required, allowing flexibility according to application needs.

Interfaces and Integration
Standard VGA input (default) with optional HDMI and DVI makes integration with embedded boards and industrial systems straightforward. A dedicated USB port supports touch functionality; optional audio line-in and speakers available.

Installation and Mounting
Designed for easy integration: front bezel O-ring sealing plus multiple mounting options (panel mount or VESA) simplify installation into cabinets, racks or custom housings.

Recommended Applications
Suitable for factory automation, outdoor kiosks (parking, petrol stations), pool and SPA kiosks, and other semi-outdoor or dusty industrial environments when installed correctly.

Certifications

• CE
• FCC

Technical Specifications

• Display Size: 8.4 inches
• Resolution: 800 x 600
• Panel Brightness: 600 nits
• Contrast Ratio: 600:1
• View Angles: 75, 75, 60, 70
• Display Color: 262K Colors
• Active Area: 170.4 x 127.8 mm
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 275 x 216 x 56 mm
• Cut out: 252 x 185 mm
• Weight: 2 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory (standard): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC input
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
