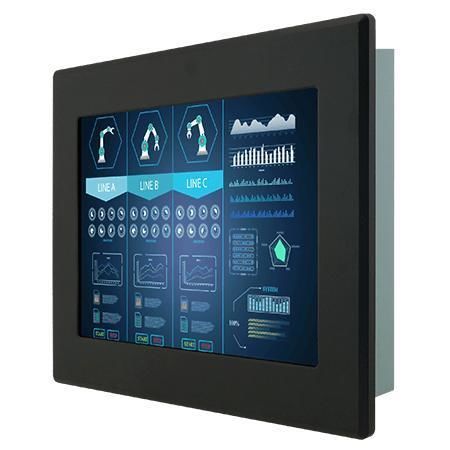

Touch screen monitor R12L600-IPM2

resistive touch screenindustrialfor HMI interface

Overview
The R12L600-IPM2 is a 12.1-inch front IP65 industrial display designed for embedded, commercial and industrial installations. It provides front-side water and dust protection while maintaining a narrow bezel for integration in cabinets, kiosks and panels.

Key features

• 12.1-inch, 1024 x 768 resolution
• VGA (standard) and HDMI/DVI (optional) inputs
• Panel mount and VESA mount options
• Front IP65 waterproof and dustproof
• Panel brightness: 500 nits

Product highlights

• Front IP65 protection: Front bezel sealed to IP65 when correctly installed to resist water and dust ingress for wet or dusty environments.
• Touch and surface options: Default resistive touch screen with optional protection glass (no touch) or SAW touch to match operator requirements.
• Multiple video interfaces: VGA standard with HDMI/DVI options for broad compatibility with embedded boards and systems.
• Easy panel integration: Front bezel with rubber O-ring sealing enables reliable sealing between bezel and customer fixture for cabinet or rack installations.
• Outdoor kiosk suitability: When embedded and sealed correctly, the front IP65 design supports outdoor kiosk use against water, humidity, dust and sunlight exposure.

Certifications

• CE
• FCC

Technical specifications

• Display Size: 12.1 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 500 nits
• Contrast Ratio: 1000:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.2M Colors
• Active Area: 245.76 x 184.32 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• IO Ports — USB: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Mechanical — Dimension: 324 x 274 x 43 mm
• Mechanical — Cut out: 303 x 252 mm
• Weight: 2.4 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Standard accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (optional)
• Power: 12V DC input (24V DC optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
