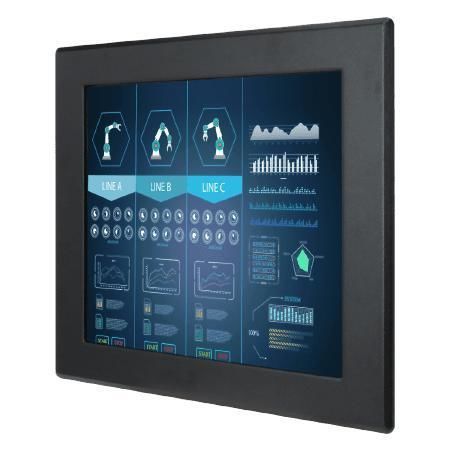

Resistive touch screen monitor S17L500-IPM1

17"1280 x 1024VESA mounting

Overview
Winmate S17L500-IPM1 is a 17-inch front IP65 panel-mount display designed for industrial and commercial environments requiring front-side water and dust protection. The display features a narrow bezel and compact footprint suitable for HMI, outdoor kiosks, pool and SPA kiosks, and similar installations.

Key features

• 17.0 inches, 1280 x 1024 resolution
• Panel mount and VESA mount options
• Front-side IP65 waterproof and dustproof rating
• VGA input standard, HDMI and DVI optional
• Resistive touch screen optional or protection glass without touch

Installation and integration
The front bezel includes a rubber O-ring to seal the bezel to the customer fixture and prevent ingress of water and dust. The unit supports panel cut-out installation or VESA mounting and is supplied with essential accessories to simplify integration into cabinets and racks.

Recommended applications

• Outdoor self-service kiosks and parking terminals
• Fuel stations and pool or SPA kiosks
• Factory automation and HMI panels in wet or dusty areas

Certifications

• CE
• FCC

Technical specifications

• Display Size: 17.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without Touch Function (Optional)
• Resolution: 1280 x 1024
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Display Color: 16.2M Colors
• Active Area: 337.920 x 270.336 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Dimension: 440 x 360 x 65 mm
• Cut out: 412 x 332 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional, varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control Buttons: 5 keys: -, +, Power, Esc, Enter
