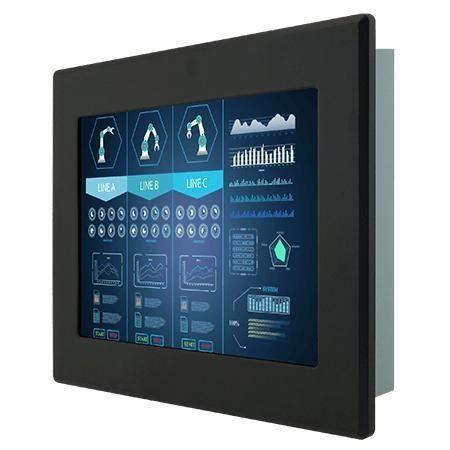

Resistive touch screen monitor R12T600-IPL1

industrialoutdoorfor industrial machines

Overview
Winmate 12.1-inch Front IP65 display R12T600-IPL1 is built for embedded, commercial and industrial panel-mount applications requiring front-side water and dust protection. The compact bezel and front IP65 rating make it suitable for factory automation, outdoor kiosks, pool and SPA kiosks, parking and fuel-station terminals when properly installed in an enclosure.

Key Features

• 12.1-inch display, 800 x 600 resolution
• VGA input standard; HDMI and DVI optional
• Panel mount with VESA compatibility
• Front IP65 waterproof and dustproof design
• Panel brightness 450 nits, contrast ratio 700:1

Certifications

• CE
• FCC

Product Highlights

• Front IP65 sealing: Front bezel with rear O-ring provides a sealed interface to the customer enclosure to prevent water and dust ingress when installed correctly.
• Touch and surface options: Default resistive touch; optional protection glass without touch; optional SAW touch to match different operator requirements.
• Signal interfaces: Standard VGA plus optional HDMI and DVI for easy integration with embedded boards and systems.
• Easy installation: Panel-mount design with VESA support and rear sealing for cabinet or rack integration.
• Outdoor kiosk suitability: With correct enclosure integration, front IP65 rating supports use in wet, humid or dusty outdoor kiosk environments.

Technical specifications

• Model: R12T600-IPL1
• Display size: 12.1 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Resolution: 800 x 600
• Panel brightness: 450 nits
• Contrast ratio: 700:1
• Viewing angles: 80, 80, 75, 65
• Display color: 16.2M Colors
• Active area: 246 x 184.5 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB: 1 x USB for touch screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line-in 3.5 mm (Optional); 2 x Speaker (Optional)
• Accessories (typical): VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (varies)
• Power rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
