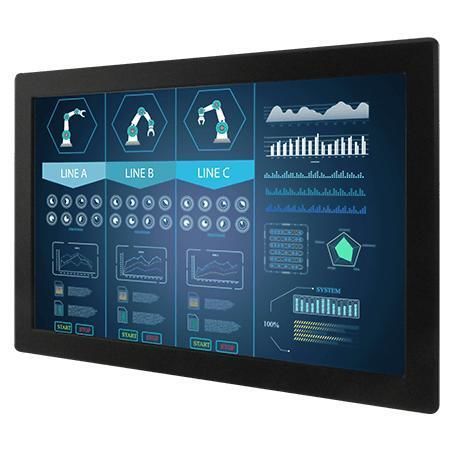

Resistive touch screen monitor W22L100-IPA3HB

outdoorfor displays21.5"

Overview
Winmate 21.5" Front IP65 High Brightness Display W22L100-IPA3HB is designed for industrial and commercial applications requiring a waterproof and dustproof front. The display supports panel or VESA mounting and multiple surface options to suit wet, dusty or outdoor environments such as factory automation, outdoor kiosks, pools and SPA kiosks.

Key Features

• 21.5", 1920 x 1080 (Full HD)
• VGA input (default); HDMI and DVI optional
• Panel mount and VESA mount options
• High brightness: 1000 nits
• Front IP65 waterproof and dustproof
• Resistive touch (default); protection glass or SAW touch optional

Product Highlights
Waterproof front IP65 design provides protection against water and dust while keeping a compact narrow bezel suitable for panel and kiosk installations.

Flexible touchscreen and surface options: standard resistive touch, optional protection glass without touch, or optional SAW touch to match application requirements.

Multiple signal interfaces for easy integration: VGA default with optional HDMI and DVI for connection to embedded boards and industrial systems.

Front bezel with rear O-ring sealing enables secure sealing between the bezel and customer fixture to prevent water and dust ingress and simplifies panel installation.

High brightness with optical bonding (anti-reflective bonded cover glass) reduces reflections, increases contrast and improves readability under direct sunlight or high humidity outdoor conditions.

Certifications

• CE
• FCC

Specifications

• Size: 21.5 inches
• Resolution: 1920 x 1080
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Panel Brightness: 1000 nits
• Contrast Ratio: 5000
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 534 x 384 x 66 mm
• Cut out: 510 x 325 mm
• Weight: 6.6 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional, varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
