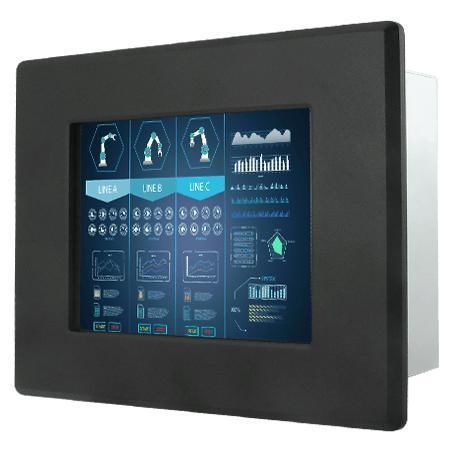

Resistive touch screen monitor R08T200-IPT1WT

with touchscreenprotection8.4"

Short description
Winmate R08T200-IPT1WT is an 8.4-inch front IP65 wide-temperature display for industrial and commercial installations. It provides front-side waterproof and dustproof protection, a wide operating temperature range and multiple video and touch options for integration in kiosks, panels, racks and embedded systems.

Key features

• 8.4-inch, 800 x 600 (SVGA) display with 450 nits brightness
• Front IP65 waterproof and dustproof protection
• Wide operating temperature: -20°C to 60°C
• VGA input (default); HDMI and DVI optional
• Panel mount and VESA mount supported
• Multiple surface options: resistive touch (default), protection glass (no touch), SAW or other touch variants

Overview
The R08T200-IPT1WT is designed for wet and dusty environments where front-side sealing is required. The front bezel uses a rubber O-ring sealing method to maintain IP65 protection when the display is mounted into customer enclosures. The product supports flexible surface options to match application needs and offers intuitive touchscreen operation for industrial operators. Standard signal interfaces and a USB touch port simplify integration with embedded boards and systems. Typical applications include outdoor kiosks (when correctly installed), factory automation panels, parking and payment stations, fueling points, pool and SPA kiosks, and similar harsh environments.

Certifications

• CE
• FCC

Technical specifications

• Model: R08T200-IPT1WT
• Brand: Winmate
• Display size: 8.4 inches
• Resolution: 800 x 600 (SVGA)
• Panel brightness: 450 nits
• Contrast ratio: 600:1
• View angles: 80, 80, 60, 80
• Display color: 16.2M colors
• Active area: 170.4 x 127.8 mm
• Touch / Glass options: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• USB: 1 x USB for touch screen
• Video inputs: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x speaker (Optional)
• Mounting: VESA Mount / Panel Mount
• Mechanical dimensions: 296.2 x 228.2 x 50 mm
• Enclosure: Metal
• Cooling system: Fanless design
• Operating humidity: 30% to 90% RH, non-condensing
• Operating temperature: -20°C to 60°C
• Storage temperature: -25°C to 65°C
• Power rating: 12V DC input
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional, varies by product)
• Control keys: 5 keys ( -, +, Power, Esc, Enter )
