TFT monitor R10L100-IPT2

resistive touch screenindustrialoutdoor

Product overview

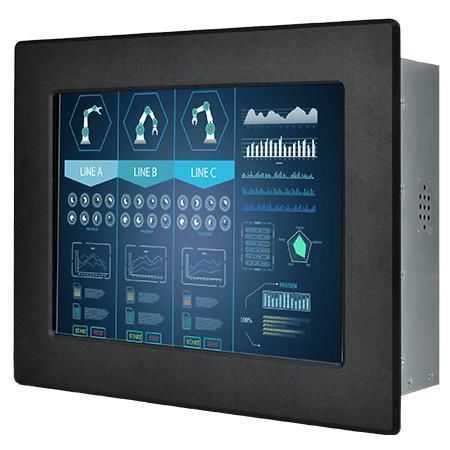

Winmate R10L100-IPT2 is a 10.4-inch front IP65 industrial display designed for wet and dusty environments. The front bezel is IP65-rated to provide water and dust resistance while retaining a compact narrow-bezel form factor suitable for panel or VESA mounting in factory automation, outdoor kiosks, pool/SPA kiosks and other commercial or industrial installations.

Key features

• 10.4-inch TFT, 1024 x 768 resolution
• VGA input (default); HDMI and DVI optional
• Panel mount and VESA mount options
• Front IP65 waterproof and dustproof bezel
• Optional resistive touch or protection glass (no-touch)

Design and recommended applications
Designed for sites that require frontal protection against water and dust. Typical applications include factory automation, outdoor information kiosks, pool and SPA kiosks, service stations and payment terminals.

Touch and surface options
Flexible surface choices: resistive touchscreen for interactive use or protection glass without touch for protected displays. USB interface provided for touch control.

Interfaces and connectivity
Standard VGA (default) with optional HDMI and DVI for integration with embedded boards and systems. Optional audio line-in and speakers; 1 x USB for touch.

Installation and mechanical
Rear O-ring rubber sealing on the front bezel seals the bezel to customer fixtures to prevent ingress. Metal housing with aluminum bezel and fanless design. Panel cut-out and VESA dimensions enable straightforward installation.

Certifications

• CE
• FCC

Technical specifications

• Model: R10L100-IPT2
• Display size: 10.4 inches
• Resolution: 1024 x 768
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• View angles: 88/88/88/88
• Display color: 16.2M Colors
• Active area: 210.4 x 157.8 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB port: 1 x USB (for touch)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: audio line-in (3.5 mm) optional; 2 x speaker optional
• Mechanical dimension: 284 x 234 x 43 mm
• Cut out: 264 x 216 mm
• Weight: 1.7 kg
• Mounting: VESA mount / panel mount
• Enclosure: metal housing with aluminum bezel
• Cooling system: fanless design
• Power rating: 12V DC in (24V DC optional)
• Controls: 5 keys (-, +, Power, Esc, Enter)
• Accessories included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
