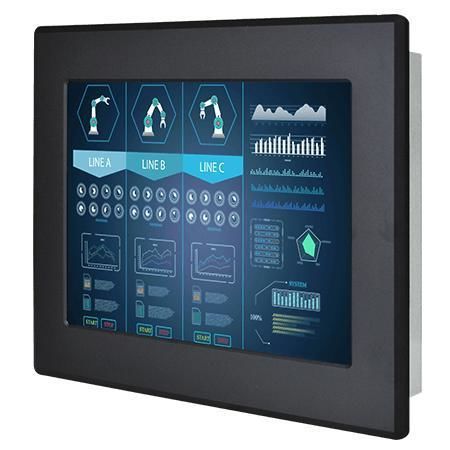

TFT monitor R15L100-IPC3HB

resistive touch screenindustrial15"

Key features

• 15.0-inch TFT display, 1024 x 768 resolution
• High brightness panel (1000 nits)
• VGA input (default), HDMI/DVI optional
• Front IP65 waterproof and dustproof
• Panel mount and VESA mount options
• Resistive touch (default); Protection glass w/o touch and SAW optional

Waterproof Front IP65 Design
The Winmate Front IP65 Series display is engineered for wet and dusty environments. The front bezel is sealed with a rear rubber O-ring to maintain IP65 protection on the front side, enabling reliable installation in kiosks, cabinets and outdoor enclosures used in factory automation, parking, fuel stations, pools and similar settings.

Intuitive operation with touchscreen
Surface options include resistive touch (default), protection glass without touch and optional SAW touch to match operator needs and application requirements in industrial contexts.

HDMI and VGA signal interfaces
Designed for easy integration with embedded boards and systems, the display supports VGA by default and offers HDMI and DVI as optional signal interfaces to cover most industrial and commercial setups.

Easy installation
The bezel seal and compact narrow-bezel design simplify front-side mounting and installation into customer fixtures, cabinets or racks while preventing ingress of water and dust.

Suitable for outdoor kiosk applications
When embedded correctly in a suitable enclosure, the front-side IP65 rating lets the display withstand water, humidity, sunlight and airborne particles, making it appropriate for outdoor kiosks such as parking, gas stations and poolside terminals.

High brightness and optical bonding
Optical-grade adhesive bonding between cover glass and panel reduces reflections and eliminates air gaps to improve readability in direct sunlight and high-humidity environments while increasing effective contrast.

Technical specifications

• Model: R15L100-IPC3HB
• Display Size: 15.0 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 1000 nits
• Contrast Ratio: 2000:1
• View Angles: 88 / 88 / 88 / 88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) Optional; 2 x Speaker Optional
• Dimension: 400 x 320 x 54.8 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Included accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (varies)
• Power Rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
