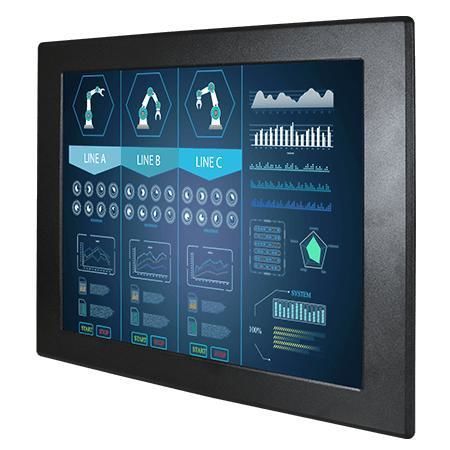

Touch screen monitor R19L300-IPA1HB

resistive touch screenindustrialfor displays

Overview
Winmate R19L300-IPA1HB is a 19-inch front IP65 high-brightness display designed for wet and dusty industrial and commercial environments. The front bezel is sealed to IP65 and the product supports compact panel and VESA mounting for integration into cabinets, kiosks or racks.

Key Features

• Display: 19.0 inches, 1280 x 1024
• Video inputs: VGA (default), HDMI (optional), DVI (optional)
• Mounting: Panel mount and VESA mount
• Panel brightness: 1000 nits
• Front IP65 water and dust protection
• Touch options: Resistive (default); Protection glass w/o touch (optional); SAW touch (optional)

Product Highlights

• Front IP65 sealing – front bezel sealed with a rubber O-ring to prevent ingress of water and dust when correctly installed into customer enclosure.
• Flexible touch and surface options – resistive touchscreen standard; optional protection glass or SAW touch to match application requirements.
• Multiple signal interfaces – supports VGA by default with HDMI and DVI options for easy integration with embedded systems.
• Easy installation – standard panel and VESA mounting for cabinet, rack or kiosk installation.
• Outdoor-ready readability – high brightness and optically bonded anti-reflective glass reduce reflections and improve visibility in direct sunlight.

Certifications

• CE
• FCC

Technical specifications

• Display Size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80 (typical)
• Display Color: 16.7M Colors
• Active Area: 376.32 x 301.06 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 474 x 384 x 63 mm
• Cut out: 446 x 356 mm
• Weight: 6.5 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional, varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
