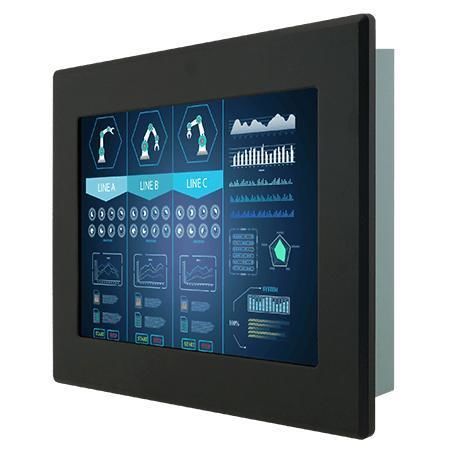

LCD monitor R12L600-IPM2HB

resistive touch screenindustrialoutdoor

Key features

• 12.1 inches, 1024 x 768 front IP65 high-brightness display
• VGA (default) and HDMI (optional) signal inputs
• Panel mount and VESA mount options
• Front IP65 waterproof and dustproof design
• Resistive touch (default) with optional protection glass or SAW touch
• Panel brightness: 1000 nits; fanless metal enclosure

Overview
The R12L600-IPM2HB is a 12.1-inch front IP65 display designed for industrial and commercial applications that require front-side protection against water and dust while maintaining a compact bezel. It is suitable for factory automation, outdoor kiosks, pool and spa kiosks, parking stations and similar environments where exposure to moisture, particles or direct sunlight is expected.

Touch and surface options
The display supports multiple surface configurations to match installation needs: resistive touch screen by default, protection glass without touch for non-interactive installations, and SAW touch as an optional choice. Surface options facilitate operator interaction or vandal-resistant installations depending on the project.

Signal interfaces and integration
Standard VGA input and optional HDMI or DVI interfaces provide straightforward integration with embedded boards and industrial systems. A USB port is available for touch functionality. Audio line-in and speakers are optional depending on configuration.

Installation and sealing
The front bezel features a rubber O-ring seal to prevent ingress between the bezel and customer fixture, ensuring the front-side IP65 rating is maintained when properly installed. The unit supports flush panel mounting and VESA mounting for flexible mechanical integration.

Outdoor and kiosk suitability
When embedded correctly in an enclosure, the front IP65 rating protects against water, humidity and airborne particles and, combined with high brightness and optical bonding, ensures readability in direct sunlight and in variable outdoor conditions.

High brightness and optical bonding
With a 1000 nits panel and optional anti-reflective protection glass optically bonded to the display, the product reduces reflections and eliminates the air gap to improve contrast and visibility in high-illumination or high-humidity environments.

Certifications

• CE
• FCC

Accessories (standard / optional)

• 1 x VGA cable
• 1 x HDMI cable
• 100~240V AC to DC adapter
• Power cord
• Manual
• VESA screws (varies by product)
• Optional: Remote controller

Technical specifications

• Display: Size 12.1 inches; Resolution 1024 x 768; Panel brightness 1000 nits; Contrast ratio 700:1; View angles 80, 80, 70, 70; Display color 16.2M; Active area 261.12 x 163.2 mm
• Touch/Glass: Resistive touch (default); Protection glass w/o touch (optional); SAW touch (optional)
• Environment: Operating humidity 10% to 90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C
• IO: 1 x USB for touch; Video 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional); Audio line in (3.5 mm) optional; 2 x speaker optional
• Mechanical: Dimensions 324 x 274 x 43 mm; Cut out 303 x 252 mm; Mounting panel mount / VESA mount; Enclosure metal housing with aluminum bezel; Fanless design
• Power: 12V DC in (default); 24V DC in (optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
• Certifications: CE, FCC
