Liquid crystal monitor W32L300-IPA3TR

touch screenresistive touch screenindustrial

Overview

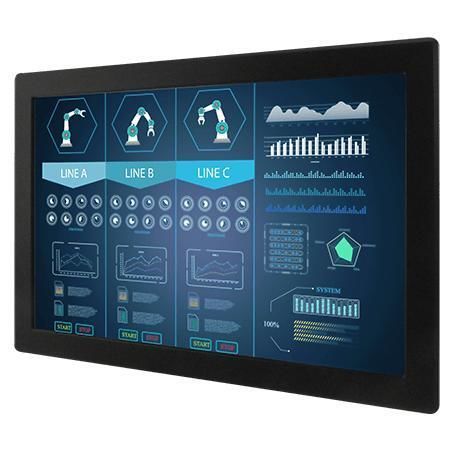

Winmate W32L300-IPA3TR is a 32-inch front IP65 transflective display engineered for industrial and commercial installations requiring a water- and dust-resistant front. It delivers Full HD (1920 x 1080) image quality and supports both panel and VESA mounting for cabinet or kiosk integration.

Key Features

• 32" diagonal, Full HD 1920 x 1080
• Transflective panel for improved readability in varied lighting
• Front-side IP65 waterproof and dustproof sealing
• VGA (default), HDMI and DVI signal inputs
• Panel mount and VESA mount options; protection glass or resistive touch options

Design & Integration
The front bezel uses a rubber O-ring to seal against the customer's fixture, preventing ingress of water and dust when properly installed. The metal enclosure and fanless design support long-term industrial operation. Multiple signal interfaces and a USB touch port simplify connection to embedded boards and systems.

Use Cases
Suitable for outdoor and semi-outdoor kiosks, industrial HMIs, factory automation panels, parking or gas-station information systems, and pool/SPA kiosks where a sealed front face is required.

Certifications
CE, FCC

Technical specifications

• Model: W32L300-IPA3TR
• Display size: 32 inches
• Touch / Glass: Protection Glass (touch optional)
• Resolution: 1920 x 1080
• Panel brightness: 400 nits
• Contrast ratio: 4000:1
• Viewing angles: 89° / 89° / 89° / 89°
• Colors: 16.7M
• Active area: 698.4 x 392.85 mm
• Operating humidity: 10% to 90% (non-condensing)
• Operating temperature: 0 ~ 50°C
• Storage temperature: -10 ~ 60°C
• IO: 1 x USB (touch); 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speakers optional
• Dimensions (W x H x D): 790 x 470 x 70 mm
• Mounting: VESA mount / Panel mount
• Enclosure: Metal; Cooling: Fanless design
• Power: 24V DC in
• Controls: 5 keys: -, +, Power, Esc, Enter
• Accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
