Resistive touch screen monitor W27L100-IPA1

industrialoutdoorfor digital signage

Overview

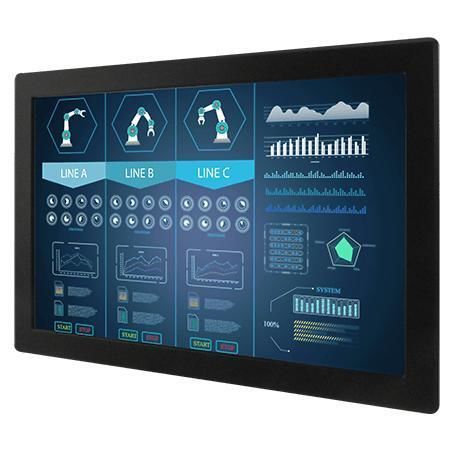

Front IP65 27-inch industrial display W27L100-IPA1 with Full HD 1920 x 1080 resolution. Designed for wet and dusty environments, the front face is rated IP65 while the unit keeps a narrow-bezel, panel-ready form factor suitable for integration into cabinets, kiosks and industrial equipment.

Highlights

• 27" diagonal, Full HD 1920 x 1080
• Front IP65 waterproof and dustproof
• VGA (default) with HDMI and DVI optional
• Panel mount and VESA mount support
• Protection glass or resistive touch options

Front IP65 design
The front bezel includes an O-ring sealing solution to achieve IP65 protection at the front interface. This protects the enclosure from water and dust ingress when the display is correctly integrated into customer fixtures or cabinets.

Interfaces & installation
The display provides common video interfaces for easy integration (VGA standard, HDMI/DVI optional), 1 x USB for touch, optional audio line-in and speakers. Supports panel mount and VESA mounting; fanless metal housing with aluminum bezel eases installation in industrial and kiosk enclosures.

Certifications

• CE
• FCC

Applications

• Factory automation and industrial HMI
• Outdoor and semi‑outdoor kiosks (parking, fuel stations, pools/spa)
• Embedded displays for commercial equipment and cabinets

Technical specifications

• Size: 27.0 inches
• Touch / Glass: Protection Glass (or resistive touch optional)
• Resolution: 1920 x 1080
• Panel Brightness: 300 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 599 x 337 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports (Video): 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• USB: 1 x USB for touch screen
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 706 x 444 x 63 mm
• Cut out: 640 x 376 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional, varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
