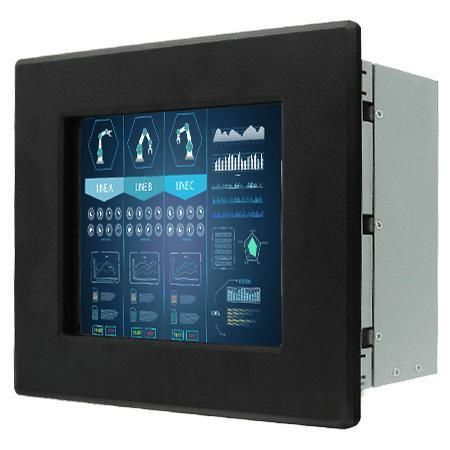

LCD monitor R08T200-IPT1HB

resistive touch screenwith touchscreenoutdoor

Product subtitle
8.4 inches Front IP65 High Brightness Display

Key Features

• 8.4 inches, 800 x 600 resolution
• VGA and HDMI input
• Panel mount
• VESA mount
• Front IP65 waterproof and dustproof
• High brightness (1000 nits)

Certifications

• CE
• FCC

Overview
Waterproof Front IP65 Design
Front IP65 Series Display is built for wet and dusty applications; rated to IP65 to support water and dust resistance while keeping a compact and narrow bezel design suitable for factory automation, outdoor kiosks, pool and spa kiosks, and similar environments.

Intuitive Operations with the Touchscreen
Offers flexible surface options: resistive touch screen (default), optional protection glass without touch, and optional SAW (Surface Acoustic Wave) touch to meet different application requirements.

HDMI and VGA Signal Interfaces
Provides easy integration to embedded boards and systems via VGA and HDMI interfaces; DVI available as an option for additional compatibility.

Easy Installation
Unique rubber O-ring on the rear of the front bezel allows sealing between the bezel and the customer fixture to prevent water and dust ingress. Designed for easy installation inside cabinets or racks for diverse applications.

Suitable for Outdoor Kiosk Applications
When embedded in an enclosure and installed correctly, front-side IP65 rating protects the display from water, humidity, sunlight and airborne particles, making it suitable for outdoor kiosks at parking stations, gas stations, pools and similar sites.

High Brightness
High brightness displays deliver reliable 24/7 operation. Anti-reflective cover glass is optically bonded to the display to eliminate air gaps and reflections, improving readability under direct sunlight and in high humidity environments and increasing contrast.

Characteristics / Technical specifications

• Display size: 8.4 inches
• Resolution: 800 x 600
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Panel brightness: 1000 nits
• Contrast ratio: 600:1
• View angles: 80, 80, 60, 80
• Display color: 16.2M colors
• Active area: 170.4 x 127.8 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certification: CE, FCC
• USB: 1 x USB for touch screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x speaker (Optional)
• Mechanical dimension: 275 x 216 x 56 mm
• Mounting: VESA mount / Panel mount
• Enclosure: Metal
• Cooling system: Fanless design
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional, varies by product)
• Power rating: 12V DC input
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
