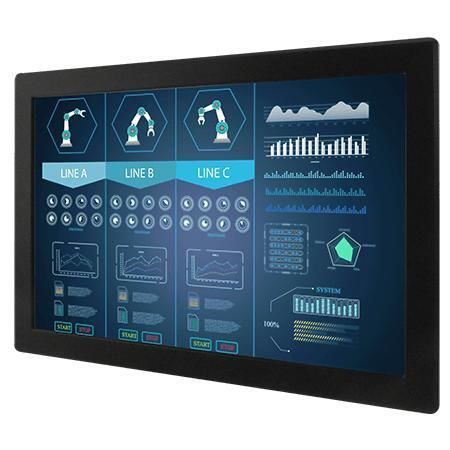

LCD monitor W22L100-IPA3

touch screenresistive touch screenindustrial

Overview
Winmate W22L100-IPA3 is a 21.5" front-IP65 industrial panel display designed for wet and dusty environments. It delivers Full HD 1920 x 1080 and supports panel and VESA mounting for integration into cabinets, kiosks and control panels.

Key features

• 21.5" diagonal, 1920 x 1080
• VGA (default) and HDMI (optional) inputs; DVI optional
• Panel mount and VESA mount
• Front IP65 waterproof and dustproof
• Resistive touch standard; protection glass or SAW optional

Certifications

• CE
• FCC

Waterproof front IP65 design
The front bezel is rated IP65 and uses a rubber O-ring seal at the rear of the bezel to prevent water and dust ingress when installed in a customer enclosure. The narrow bezel keeps overall dimensions compact for kiosk and panel integration.

Intuitive operations with the touchscreen
Surface options include resistive touch (default), protection glass without touch (optional) and SAW touch (optional). A USB port is provided for touch input when fitted.

HDMI, VGA signal interfaces
Standard VGA input simplifies integration with embedded boards; HDMI and DVI are available as options. Optional audio line-in (3.5 mm) and speakers can be fitted according to configuration.

Easy installation
Designed for panel cut-out mounting (cut out: 510 x 325 mm) and VESA mounting; includes mounting hardware and sealing features for straightforward installation in racks or cabinets.

Suitable for outdoor kiosk applications
When correctly integrated into an appropriate enclosure, the front-IP65 display resists water, humidity, temperature variations and airborne particles, making it suitable for outdoor kiosks (parking, gas stations, pools, etc.).

Technical specifications

• Display Size: 21.5 inches
• Resolution: 1920 x 1080
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 534 x 350 x 66 mm
• Cut out: 510 x 325 mm
• Weight: 6.5 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
