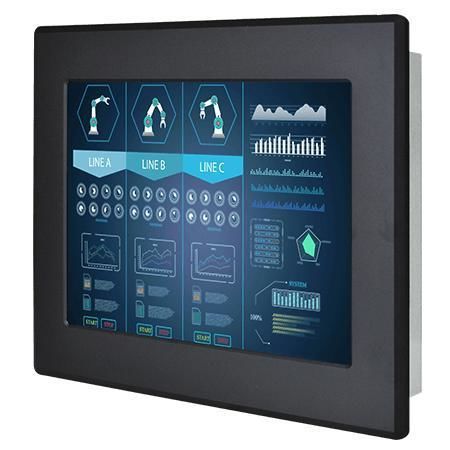

LCD monitor R15L600-IPC3

resistive touch screenindustrialfor displays

Product Overview
Winmate 15.0-inch front IP65 industrial display R15L600-IPC3 is a panel-mount display for embedded, commercial and industrial applications. Native 1024 x 768 resolution, 300 nits brightness and 2000:1 contrast ratio. Default video input is VGA with optional HDMI or DVI. Default touch is Resistive; Protection Glass (no touch) and SAW touch are available as options. Metal housing with aluminum bezel and a rubber O-ring front seal ensure front-side IP65 protection.

Key Features

• 15.0-inch front IP65 industrial display, 1024 x 768
• VGA (default), HDMI and DVI options for video
• Resistive touch standard; Protection Glass (no touch) and SAW optional
• Panel mount and VESA mount options; fanless metal enclosure
• Front IP65 waterproof and dustproof design

Certifications

• CE
• FCC

Overview & Use Cases
Front IP65 sealing makes the display suitable for wet or dusty environments such as factory automation, outdoor kiosks, pool and SPA kiosks, parking and fuel stations. Selectable surface options and sunlight-readable/optical-bonding solutions are available to match visibility and durability requirements. The O-ring sealed bezel mates with customer fixtures to prevent ingress when installed in an enclosure.

Inputs & Interfaces

• USB: 1 x USB for touch screen
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in (3.5 mm) optional; 2 x speakers optional

Mechanical & Environmental

• Dimensions: 400 x 320 x 56.8 mm
• Cut out: 360 x 280 mm
• Weight: 4 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -10 °C to 60 °C

Accessories

• Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional: Remote controller (varies by product)

Technical specifications

• Model: R15L600-IPC3
• Display size: 15.0 inches
• Touch / Glass: Resistive touch (default); Protection Glass w/o touch (optional); SAW touch (optional)
• Resolution: 1024 x 768
• Panel brightness: 300 nits
• Contrast ratio: 2000:1
• View angles: 88,88,88,88
• Display color: 16.2M colors
• Active area: 304.1 x 228.1 mm
• USB port: 1 x USB for touch
• Video: VGA (default); HDMI (optional); DVI (optional)
• Audio: Audio line-in (3.5 mm) optional; 2 x speaker optional
• Dimensions: 400 x 320 x 56.8 mm
• Cut out: 360 x 280 mm
• Weight: 4 kg
• Mounting: VESA / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power rating: 12V DC input (24V DC optional)
• Control buttons: 5 keys: -, +, Power, Esc, Enter
• Certification: CE, FCC
