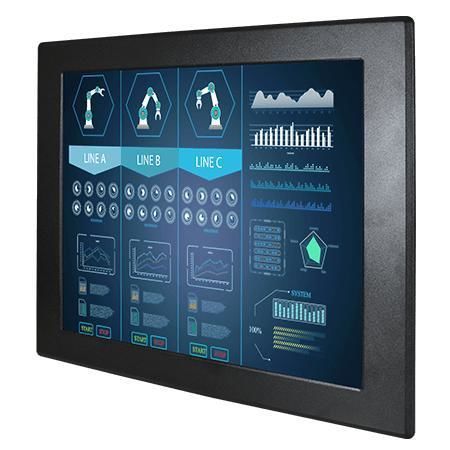

Resistive touch screen monitor R19L300-IPA3WT

industrialoutdoorfor industrial machines

Key Features

• 19-inch, 1280 x 1024 front IP65 wide-temperature display
• VGA (default) and HDMI input; DVI optional
• Panel mount and VESA mount options
• Front-side IP65 waterproof and dustproof
• Wide operating temperature range: -20°C to 60°C
• 350 nits brightness, 1000:1 contrast ratio

Certifications

• CE
• FCC

Overview
Winmate's Front IP65 Series is engineered for wet, dusty and outdoor applications. The front-side IP65 rating delivers water and dust resistance while preserving a narrow bezel suitable for industrial automation, outdoor kiosks, pool and spa kiosks and other commercial or industrial use cases. The display is available with several surface options to match operational requirements.

Intuitive Operations
The product supports multiple surface options: default resistive touch, optional protection glass without touch, or optional SAW (Surface Acoustic Wave) touch. These choices allow either intuitive touchscreen interaction or a protected display surface where touch is not required.

Interfaces & Integration
Standard signal interfaces include 1 x VGA (default) and 1 x USB for touch. HDMI and DVI are available as options. The I/O set and form factor facilitate integration with embedded boards, industrial PCs and straightforward installation in cabinets or racks using panel or VESA mounting.

Robust Mechanical & Environmental Design
The front bezel uses a rubber O-ring seal to prevent ingress between the bezel and customer enclosure. When correctly installed, the front IP65 protection helps the unit withstand water spray, humidity, temperature variation and airborne particles. The unit features a metal housing with an aluminum bezel and a fanless cooling design.

Specifications

• Model: R19L300-IPA3WT
• Size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Display Color: 16.7M Colors
• Active Area: 376.32 x 301.06 mm
• Operating Humidity: 30% to 90% RH, Non-Condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -25°C to 65°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 470 x 384 x 63 mm
• Cut out: 446 x 356 mm
• Weight: 6.6 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional, varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
