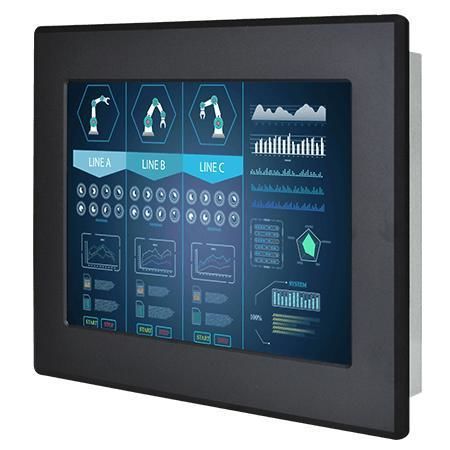

LCD monitor R15L100-IPA1

resistive touch screenindustrialoutdoor

Overview
The Winmate R15L100-IPA1 is a 15.0-inch front IP65 display designed for embedded, commercial and industrial applications that require front-side protection against water and dust. It combines a compact narrow-bezel design with flexible touchscreen and signal options to integrate into factory automation, outdoor kiosks, pool and SPA kiosks and other harsh environments.

Key features

• Display: 15.0 inches, 1024 x 768
• Inputs: VGA (default) and HDMI (optional); DVI optional
• Mounting: Panel mount and VESA mount
• Front protection: IP65 waterproof and dustproof

Highlights

• Front IP65 protection when correctly installed in an enclosure to prevent ingress of water and dust.
• Flexible surface options: resistive touch (default), protection glass without touch (optional), SAW touch (optional).
• Multiple signal interfaces for easy integration with embedded boards and systems.
• Front bezel rear rubber O-ring for sealing against customer fixtures; supports cabinet or rack installation.
• Suitable for outdoor kiosk integration when properly embedded: resists water, humidity, temperature variation, sunlight and airborne particles.

Certifications

• CE
• FCC

Technical specifications

• Brand: Winmate
• Model: R15L100-IPA1
• Display Size: 15.0 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 350 nits
• Contrast Ratio: 800:1
• View Angles: 80 / 80 / 70 / 80
• Display Color: 16.2M Colors
• Active Area: 304.128 x 228.096 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Mechanical Dimension: 400 x 320 x 56.8 mm
• Cut out: 360 x 280 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional, varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
