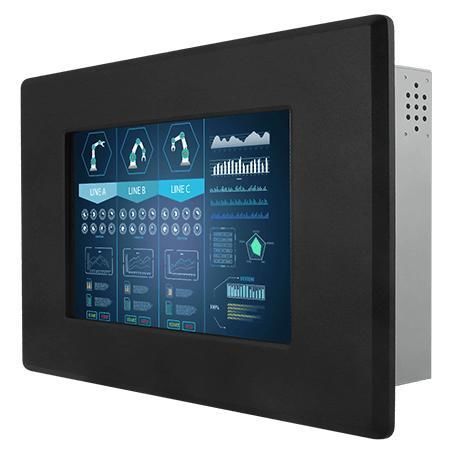

Resistive touch screen monitor W07T700-IPO1HB

industrialoutdoorprotection

Overview
The W07T700-IPO1HB is a 7.0-inch front IP65 high-brightness industrial display designed for industrial and commercial installations exposed to water, dust or strong ambient light. The sealed front bezel and compact, narrow-bezel housing enable integration in factory automation panels, outdoor kiosks, pool/spa kiosks and similar environments.

Key Features

• 7.0" diagonal display, 1024 x 600 resolution
• High brightness panel (1000 nits) for improved outdoor readability
• Front IP65 waterproof and dustproof protection
• VGA (default), HDMI/DVI (optional)
• Panel mount and VESA mount options
• Resistive touch or protection glass surface options

Certifications

• CE
• FCC

Functional highlights
The front IP65 design includes optical bonding and anti-reflective protection glass to reduce reflections and improve contrast in direct sunlight and high-humidity environments. An O-ring on the rear of the front bezel provides a sealed interface to customer enclosures to prevent ingress when installed. Surface options (protection glass or resistive touch) allow adaptation to different operator requirements.

IO & Audio

• USB: 1 x USB for touch screen (optional)
• Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speaker (optional)

Mechanical & Mounting

• Dimensions: 218 x 164.6 x 40.8 mm
• Mounting: VESA mount (default); panel mount (optional)
• Enclosure: Metal
• Cooling: Fanless design

Environment & Power

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Power rating: 12 V DC input (100~240 V AC to DC adapter included as accessory)

Accessories

• Included: 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: Remote controller (varies by product)

User Controls

• Hardware keys: 5 keys ( -, +, Power, Esc, Enter )

Technical specifications

• Model designation: W07T700-IPO1HB
• Display size: 7.0 inches
• Resolution: 1024 x 600
• Panel brightness: 1000 nits
• Contrast ratio: 800:1
• View angles: 85 / 85 / 85 / 85
• Display color: 16.7M colors
• Active area: 152.2144 x 85.92 mm
• Touch / glass: Resistive touch screen (optional) or protection glass without touch
• Front protection rating: IP65 (front waterproof and dustproof)
• IO ports: USB for touch (optional), VGA (default), HDMI/DVI optional
• Audio: 3.5 mm line-in and optional speakers
• Dimensions: 218 x 164.6 x 40.8 mm
• Mounting: VESA mount (default), panel mount optional
• Enclosure: Metal, fanless design
• Operating humidity: 10%–90% RH non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Power input: 12 V DC
• Certifications: CE, FCC
• Control: 5 keys: -, +, Power, Esc, Enter
