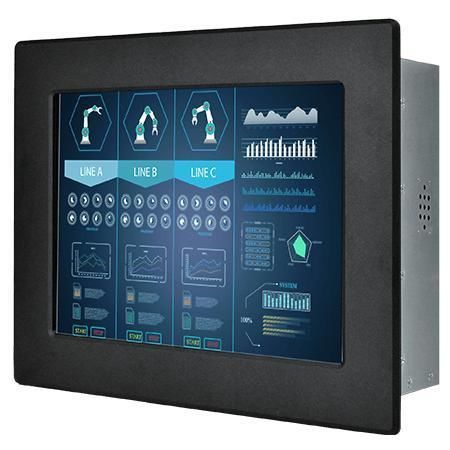

Touch screen monitor R10L600-IPP1TR

resistive touch screenfor displays10.4"

Key features

• 10.4-inch transflective panel, 800 x 600
• Front IP65 waterproof and dustproof
• VGA and HDMI inputs (DVI optional)
• Panel mount and VESA mount options
• Resistive touch (default); protection glass or SAW touch optional
• 700 nits panel brightness

Certifications

• CE
• FCC

Overview
Winmate Front IP65 Series display is engineered for wet and dusty industrial and commercial environments. The front bezel is rated IP65 to resist water and dust while maintaining a compact narrow‑bezel design suitable for integration in cabinets, kiosks and racks. Typical applications include factory automation, outdoor kiosks, pool and SPA kiosks and other locations exposed to moisture and airborne particles.

Touch and surface options
The display provides flexible surface configurations to match operational needs: resistive touch screen (standard), protection glass without touch, or SAW touch (optional). A USB port supports touch connectivity when applicable.

Interfaces & integration
Standard video interfaces include VGA (default) with optional HDMI and DVI for straightforward integration with embedded boards and systems. Optional audio line‑in and speakers are available. Power input is 12V DC (24V optional).

Installation
The front bezel includes a rubber O‑ring that seals the bezel to the customer's enclosure to prevent ingress of water and dust, simplifying panel or VESA mounting in cabinets and racks.

Technical specifications

• Model: R10L600-IPP1TR
• Display size: 10.4 inches
• Resolution: 800 x 600
• Panel brightness: 700 nits
• Contrast ratio: 400:1
• Viewing angles: 70/70/70/60
• Display colors: 262K
• Active area: 211.2 x 158.4 mm
• Touch/Glass: Resistive touch (default); protection glass or SAW optional
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch
• Audio: Audio line‑in (3.5 mm) optional; 2 x speakers optional
• Accessories: VGA cable, HDMI cable, 100~240V AC‑DC adapter, power cord, manual, VESA screws (varies)
• Power: 12V DC input (24V DC optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
