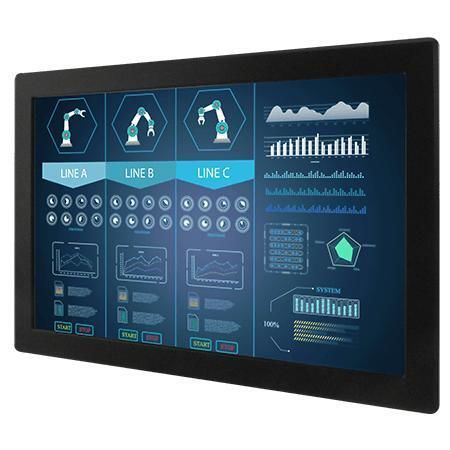

IPS LCD monitor W24L100-IPS1

resistive touch screenindustrialoutdoor

Overview
Winmate W24L100-IPS1 is a 24.0-inch front IP65 industrial display designed for wet and dusty environments. It features a 1920 x 1200 resolution, panel and VESA mounting options, and multiple video interfaces with touchscreen surface variants to suit industrial kiosk and automation applications.

Key features

• 24.0 inches, 1920 x 1200
• VGA (default) and HDMI/DVI (optional)
• Panel mount and VESA mount
• Front IP65 waterproof and dustproof
• Touch options: Resistive (default), Protection Glass (no touch), SAW (optional)

Applications
Suitable for factory automation, outdoor kiosks, pool and SPA kiosks, parking, fuel stations and other installations where the front panel must resist water and dust when embedded correctly into a sealed enclosure.

Touch and surface options
The product supports a default resistive touchscreen and optional protection glass (no touch) or SAW touch. Choose the surface option that matches operator workflow and environmental requirements.

Interfaces & integration
Standard VGA interface with optional HDMI and DVI simplifies integration with embedded boards and industrial systems. A USB port is provided for touch input; audio and speakers available as optional configurations.

Installation & mechanical design
The front bezel includes a rear rubber O-ring to seal the bezel against the customer's fixture, preventing ingress of water and dust. Metal housing with aluminum bezel, fanless cooling and compact dimensions enable installation in cabinets, racks, or kiosks.

Certifications

• CE
• FCC

Technical specifications

• Display Size: 24.0 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1920 x 1200
• Panel Brightness: 300 nits
• Contrast Ratio: 1000:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.7M Colors
• Active Area: 518.4 x 324.0 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 604 x 110 x 65 mm
• Cut out: 556 x 362 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
