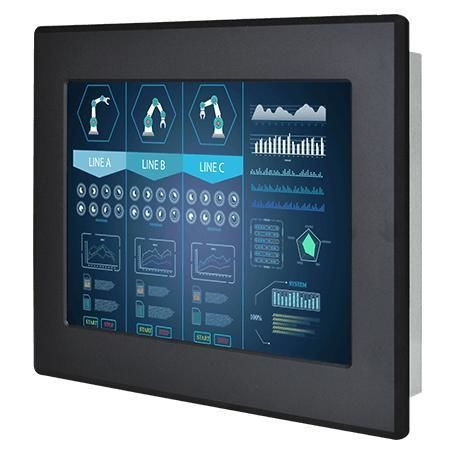

Resistive touch screen monitor R15L100-IPA1TR

industrialoutdoorfor digital signage

Overview
Winmate 15-inch front IP65 transflective display R15L100-IPA1TR designed for industrial and commercial applications requiring a waterproof and dustproof front. Optimized for wet, dusty or bright environments such as factory automation, outdoor kiosks, and pool/SPAs. Front bezel includes an O-ring for sealing to the customer’s enclosure. Surface options: resistive touch (default), protection glass (no touch) or SAW touch (optional).

Key Features

• 15", 1024 x 768
• VGA (default) and HDMI input (optional)
• Panel mount and VESA mount
• Transflective panel for enhanced visibility in bright environments

Product Highlights
Front IP65 Design: front side rated IP65 to prevent water and dust ingress while maintaining a narrow bezel for integration into cabinets and kiosks.

Touch and Surface Options: configurable surface choices to match operator requirements — resistive touch (default), protection glass without touch, or SAW touch optional.

Signal Interfaces: standard VGA and HDMI for straightforward integration with embedded boards and systems; DVI available as an option.

Installation and Sealing: rear O-ring on the front bezel enables sealing between bezel and client fixture for reliable protection in exposed installations.

Outdoor-ready when Embedded: when correctly installed in a suitable enclosure, the front IP65 rating helps withstand water, humidity, sunlight and particulates for outdoor kiosk use.

Certifications
CE, FCC

Technical specifications

• Size: 15.0 inches
• Resolution: 1024 x 768
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Panel Brightness: 610 nits
• Contrast Ratio: 700:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• IO Ports: 1 x USB for Touch Screen; Video: 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional); Audio: Audio line in (3.5mm) (Optional), 2 x Speaker (Optional)
• Mechanical: Dimension 400 x 320 x 54.9 mm; Weight 4.2 kg; Mounting: VESA Mount / Panel Mount; Enclosure: Metal Housing with Aluminum Bezel; Cooling System: Fanless Design
• Accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product); Optional: Remote Controller
• Power: 12V DC input (24V DC optional)
• Control: 5 Keys: -, +, Power, Esc, Enter
