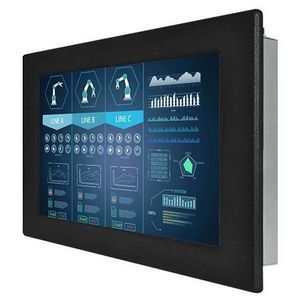

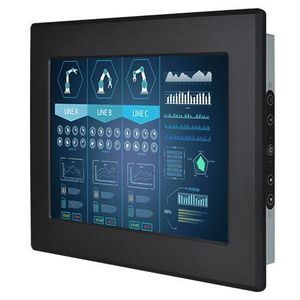

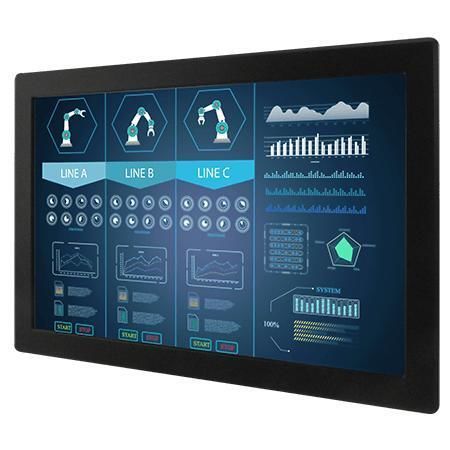

LCD monitor W24L100-IPA2TR

resistive touch screenindustrialfor displays

Overview

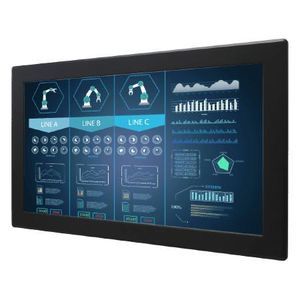

24-inch front IP65 transflective display W24L100-IPA2TR designed for industrial and commercial environments that require front-side water and dust protection. Compact narrow-bezel design with panel-mount and VESA-mount options; suitable for factory automation, outdoor kiosks, pool and spa kiosks.

Key features

• 24-inch, 1920 x 1080
• VGA input (default); HDMI and DVI optional
• Panel mount (default); VESA mount available
• Transflective LCD
• Front-side IP65 waterproof and dustproof
• Resistive touch standard; protection glass or SAW optional

Certifications

• CE
• FCC

Product highlights
Front IP65 waterproof design: front bezel rated IP65 to prevent ingress of water and dust when correctly installed in an enclosure.

Touch and surface options: standard resistive touchscreen; optional protection glass without touch and SAW (Surface Acoustic Wave) touch to match application requirements.

Multiple signal interfaces: standard VGA plus optional HDMI and DVI for integration with embedded boards and systems; USB port for touch; optional audio line-in and speakers.

Easy installation: rear rubber O-ring on the front bezel enables sealing between bezel and customer fixture to block water and dust; suitable for cabinet or rack integration.

Suitable for outdoor kiosk installations: when embedded properly, front IP65 rating helps the display withstand water, humidity, sunlight and airborne particles in outdoor kiosk environments.

Technical specifications

• Display Size: 24.0 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Display Color: 16.7M Colors
• Active Area: 527.04 x 296.46 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Dimension: 606 x 376 x 65 mm
• Cut out: 560 x 330 mm
• Mounting: VESA mount (Default); Panel mount (Optional)
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
