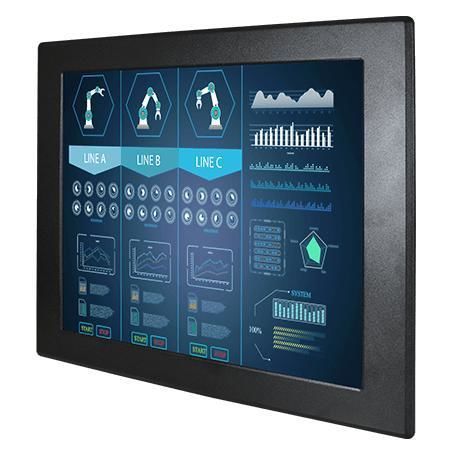

Resistive touch screen monitor R19L300-IPM2TR

outdoorfor industrial machinesfor displays

Product Summary
Winmate 19-inch front IP65 transflective industrial display R19L300-IPM2TR designed for wet and dusty industrial and commercial environments. Front-side IP65 rating, transflective panel for improved readability, VGA (standard) and HDMI (optional) inputs, supports panel mount and VESA mount. Default resistive touch with optional protection glass or SAW touch.

Key Features

• 19.0 inches, 1280 x 1024
• VGA (standard) and HDMI (optional) inputs
• Panel mount and VESA mount
• Transflective panel for outdoor readability
• Front-side IP65 waterproof and dustproof

Highlights

• Front IP65 waterproof design: front-side IP65 rating protects against water and dust when properly integrated into an enclosure, suitable for factory automation, outdoor kiosks, pool and SPA kiosks and similar installations.
• Flexible touch options: default resistive touch, optional protection glass without touch, or optional SAW touch to meet operational requirements.
• Standard VGA and optional HDMI/DVI interfaces enable easy integration with embedded boards and industrial systems; 1 x USB for touch interface.
• Sealed front-bezel installation: rear rubber O-ring on bezel provides sealing against customer fixtures to prevent ingress; supports cabinet and rack installations.
• Fanless metal housing with aluminum bezel and compact dimensions for space-constrained panels.

Specifications

• Display Size: 19.0 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1280 x 1024
• Panel Brightness: 350 nits
• Contrast Ratio: 2000:1
• View Angles: 89/89/89/89
• Display Color: 16.7M Colors
• Active Area: 376.32 x 301.06 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO: 1 x USB for touch; 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) optional; 2 x speakers optional
• Dimensions: 470 x 380 x 63 mm
• Cut-out: 446 x 356 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (optional)
• Power: 12V DC input (standard); 24V DC input optional
• Control Buttons: 5 Keys (-, +, Power, Esc, Enter)
