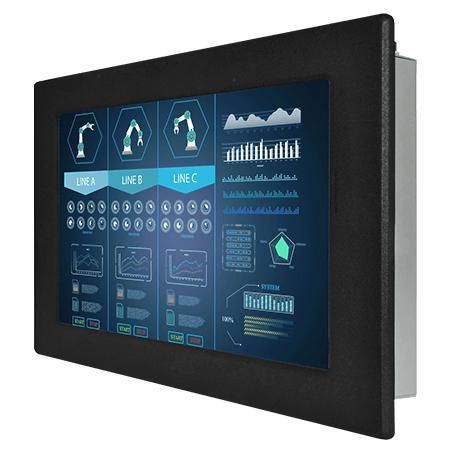

LCD monitor W10L100-IPH2

resistive touch screenindustrialoutdoor

Product overview
The Winmate W10L100-IPH2 is a 10.1 inches 1280 x 800 front IP65 display designed for industrial and commercial installations requiring front-side waterproof and dustproof protection.

Key features

• 10.1 inches, 1280 x 800 front IP65 display
• VGA (standard) and HDMI (optional) video inputs
• Panel mount and VESA mounting options
• Front IP65 rating for water and dust resistance
• Optional resistive touchscreen or protection glass

Design & applications

• Front bezel with O-ring sealing provides IP65 protection at the enclosure front when correctly installed, suitable for factory automation, outdoor kiosks, parking or pool kiosks and other wet or dusty environments.
• Narrow bezel, metal housing with aluminum bezel for compact integration into cabinets, racks and enclosures.

Interfaces & integration

• Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• USB: 1 x USB for touch interface (if touchscreen option selected)
• Audio: Line-in 3.5 mm and 2 x speakers (optional)

Installation & mechanical

• Dimensions: 286 x 182 x 38 mm; Cut out: 239 x 170 mm; Weight: 1.25 kg
• Mounting: Panel mount / VESA mount; fanless thermal design
• Power: 12V DC input (24V DC optional); front controls: 5 keys (-, +, Power, Esc, Enter)

Certifications

• CE
• FCC

Technical specifications

• Display: Size — 10.1 inches; Resolution — 1280 x 800; Brightness — 350 nits (1000 nits optional); Contrast — 800:1; View angles — 85/85/85/85; Colors — 16.7M; Active area — 216.96 x 135.6 mm; Touch/Glass — Resistive touch (optional) or protection glass (optional).
• Environment: Operating humidity — 10% to 90% RH non-condensing; Operating temperature — 0°C to 50°C; Storage temperature — -10°C to 60°C.
• I/O: USB — 1 x USB for touch; Video — VGA (default), HDMI (optional), DVI (optional).
• Audio: Audio line in (3.5 mm) optional; 2 x speaker optional.
• Mechanical: Dimension — 286 x 182 x 38 mm; Cut out — 239 x 170 mm; Weight — 1.25 kg; Enclosure — Metal housing with aluminum bezel; Cooling — Fanless.
• Accessories: Included — VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product); Optional — remote controller.
• Power: 12V DC input (24V DC optional).
