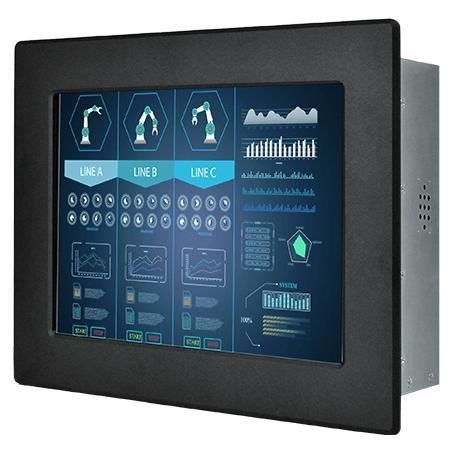

Resistive touch screen monitor R10L600-IPP1HB

with touchscreenindustrialoutdoor

Overview
Winmate R10L600-IPP1HB is a 10.4 inches front IP65-rated display designed for industrial and outdoor kiosk applications. It pairs a high-brightness panel with front-side waterproof/dustproof protection and multiple mounting and I/O options for reliable integration in harsh environments.

Key Features

• 10.4 inches, 800 x 600 resolution
• Front IP65 waterproof and dustproof
• High brightness: 1000 nits (optical bonding)
• VGA (standard) and HDMI (optional) inputs; DVI optional
• Panel mount and VESA mount options
• Touch options: Resistive (default), Protection Glass (no touch), SAW (optional)

Front IP65 design for wet and dusty environments
The front bezel is sealed to IP65 to protect against water and dust ingress when correctly mounted. The compact bezel and metal housing allow installation in cabinets, kiosks and panels in factory automation, outdoor kiosks, pools and SPA areas.

Touch and surface options
Choose from resistive touch (default) for industrial operability, protection glass without touch for display-only installations, or optional SAW touch for enhanced usability. Optical bonding and anti-reflective glass improve readability under sunlight.

Signal interfaces and integration
Standard VGA and optional HDMI/DVI interfaces simplify connection to embedded boards and industrial systems. USB is provided for touch functionality; audio and speaker options are available where required.

Installation and sealing
The front bezel features a rubber O-ring to seal the display to the customer fixture, reducing water/dust ingress. Designed for easy panel or VESA installation with standard cut-out dimensions.

Certifications

• CE
• FCC

Technical specifications

• Model: R10L600-IPP1HB
• Display size: 10.4 inches
• Resolution: 800 x 600
• Panel brightness: 1000 nits
• Contrast ratio: 400:1
• Viewing angles: 70, 70, 70, 60
• Colors: 262K
• Active area: 211.2 x 158.4 mm
• Touch / Glass: Resistive (default); Protection Glass w/o touch (optional); SAW (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB: 1 x USB (for touch)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x Speakers (optional)
• Dimensions: 284 x 234 x 43 mm
• Cut-out: 264 x 216 mm
• Mounting: Panel Mount / VESA Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Accessories included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional accessory: Remote controller (varies)
• Power: 12V DC input (24V DC optional)
• Control keys: 5 keys: -, +, Power, Esc, Enter
