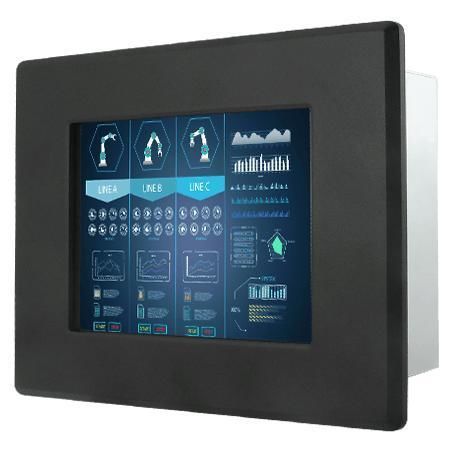

LCD monitor R08L200-IPU1TR

resistive touch screenindustrialfor industrial machines

Overview
8.4-inch transflective front IP65 display R08L200-IPU1TR designed for industrial and commercial installations. Front-side IP65 protection enables integration in wet or dusty environments while preserving a compact bezel and flexible mounting options.

Key features

• Display size: 8.4 in, resolution 800 x 600
• Panel brightness 600 nits; contrast ratio 600:1
• VGA (default) and HDMI/DVI (optional) inputs
• Panel mount and VESA mount support
• Front IP65 waterproof/dustproof design
• Transflective panel for improved visibility in high ambient light
• Resistive touch screen as default; protection glass or SAW touch optional

Certifications

• CE
• FCC

Input / I/O and Options

• Video interfaces: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch screen
• Audio: Audio line in (3.5 mm) optional; 2 x speaker optional

Mechanical & Mounting

• Dimensions: 275 x 216 x 56 mm
• Mounting: Panel mount / VESA mount
• Enclosure: Metal; fanless design
• Rear O-ring on front bezel for sealing between bezel and customer fixtures

Environment

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing

Accessories (included / optional)

• Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional: Remote controller (varies by product)

Remarks

• Default touch: Resistive touch screen. Optional: Protection glass without touch, SAW touch, or other touch options as specified.
• Front bezel O-ring must be properly sealed during installation to maintain front IP65 rating.

Technical specifications

• Model: R08L200-IPU1TR
• Display size: 8.4 inches
• Resolution: 800 x 600
• Panel brightness: 600 nits
• Contrast ratio: 600:1
• View angles: 75 / 75 / 60 / 70
• Display colors: 262K colors
• Active area: 170.4 x 127.8 mm
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• USB: 1 x USB for touch screen
• Video: VGA (Default); HDMI (Optional); DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Dimensions: 275 x 216 x 56 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Power rating: 12V DC input
• Control: 5 keys: -, +, Power, Esc, Enter
• Certification: CE, FCC
