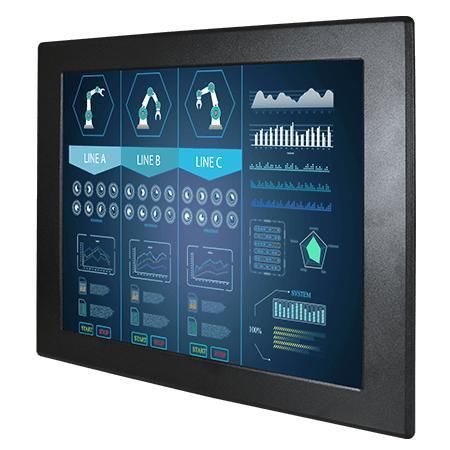

LCD monitor R19L300-IPA1HB

industrialoutdoorfor digital signage

Overview
Winmate 19-inch front IP65 high-brightness display R19L300-IPA1HB, designed for wet and dusty industrial and commercial environments. The front IP65 enclosure provides water and dust resistance with a compact narrow bezel, suitable for factory automation, outdoor kiosks, pool and spa kiosks and similar applications. The display features 1000 nits brightness and anti-reflective optical bonding for improved readability in direct sunlight and high-humidity conditions.

Key Features

• 19", 1280 x 1024
• VGA (default); HDMI/DVI optional
• Panel mount and VESA mount
• Panel brightness: 1000 nits
• Front IP65 waterproof and dustproof
• Flexible touch/glass options: Resistive, Protection Glass w/o Touch, SAW

Certifications

• CE
• FCC

Waterproof Front IP65 Design
Front bezel rated IP65 to resist water and dust when installed correctly. A rear rubber O-ring seals the bezel to the customer's fixture to prevent ingress, enabling integration into cabinets and outdoor housings.

Intuitive Touchscreen Options
Surface options include resistive touch (default), protection glass without touch (optional) and SAW touch (optional) to meet specific operator interaction requirements in industrial settings.

Signal Interfaces
Supports VGA (default) with optional HDMI/DVI inputs for easy integration with embedded boards and industrial systems. USB port provided for touch interface.

Easy Installation
Designed for straightforward panel or VESA mounting. The rubber O-ring and accessory package simplify sealing and installation in cabinets or racks.

Suitable for Outdoor Kiosk Applications
When embedded in an appropriate enclosure and installed correctly, the front-side IP65 rating enables reliable outdoor operation against water, humidity, temperature variations, sunlight and airborne particles.

High Brightness and Optical Bonding
Anti-reflective protection glass is optically bonded to eliminate the air gap, reduce reflections and improve contrast and readability under direct sunlight and in humid environments.

Technical Specifications

• Model: R19L300-IPA1HB
• Display Size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Display Color: 16.7M Colors
• Active Area: 376.32 x 301.06 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB Port: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimensions (W x H x D): 474 x 384 x 63 mm
• Cut out: 446 x 356 mm
• Weight: 6.5 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional)
• Power Rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
