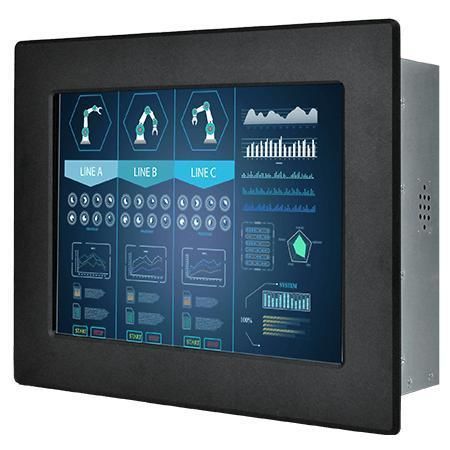

TFT monitor R10L100-IPA1WT

resistive touch screen5-wire resistive touch screenindustrial

Overview
Winmate R10L100-IPA1WT is a 10.4-inch front IP65 wide-temperature industrial display designed for applications that require front-side water and dust protection combined with extended operating temperatures. The unit supports panel or VESA mounting, VGA (default) and optional HDMI/DVI inputs, and multiple touch/surface options.

Key Features

• 10.4-inch TFT, 800 x 600 resolution, 400 nits brightness
• Front IP65 waterproof and dustproof
• Wide operating temperature: -20°C to 60°C
• VGA standard; HDMI/DVI optional; 1 x USB for touch
• Panel mount and VESA mount options; fanless metal enclosure

Applications

• Factory automation and HMI panels
• Outdoor and indoor kiosks (parking, gas stations, pools, SPA)
• Industrial cabinets, control panels and rack installations

Touch & Surface Options

• Resistive touch (5-wire) default
• Protection glass without touch, SAW or other touch technologies available as options

Integration & Interfaces

• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch interface
• Audio: audio line-in 3.5mm and optional 2 x speakers
• Power: 12V DC standard; 24V DC optional; AC/DC adapter available

Installation & Mechanical Design
Front bezel includes a rear O-ring to seal the bezel against the customer fixture and maintain IP65 protection when mounted. Compact bezel and metal enclosure permit straightforward panel or VESA installation in cabinets, racks or enclosures.

Environmental Durability & Certifications
Front IP65 rating protects against water jets and dust ingress when properly installed. Operating humidity 30%–90% RH non‑condensing. Certifications: CE, FCC.

Accessories & Options

• Typical included items: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by configuration)
• Optional items: HDMI/DVI variants, 24V DC input, remote controller, audio line-in and speakers

Technical Specifications

• Model: R10L100-IPA1WT
• Display size: 10.4 inches
• Resolution: 800 x 600
• Brightness: 400 nits
• Contrast ratio: 700:1
• Viewing angles: 80/80/70/60
• Colors: 16.2M
• Active area: 211.2 x 158.4 mm
• Operating temperature: -20°C to 60°C
• Storage temperature: -25°C to 65°C
• Operating humidity: 30% to 90% RH (non-condensing)
• Dimensions: 284 x 234 x 43 mm; Cut out: 264 x 216 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal; Cooling: Fanless
• I/O: VGA/HDMI/DVI options, 1 x USB (touch), audio line-in (3.5mm)
• Power: 12V DC in (standard); 24V DC in (optional)
• Controls: 5 keys (-, +, Power, Esc, Enter)
• Certifications: CE, FCC
