LCD monitor S17L500-IPA1WT

resistive touch screen5-wire resistive touch screenindustrial

Product Overview

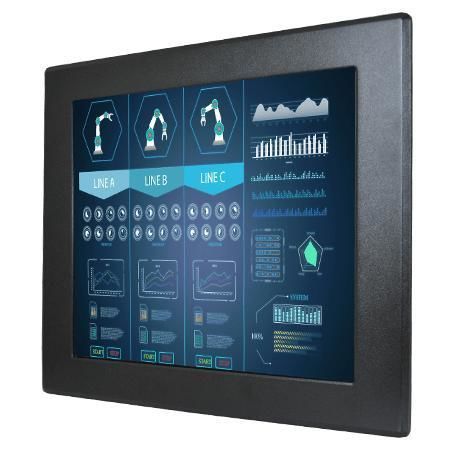

Winmate S17L500-IPA1WT is a 17" front IP65 wide-temperature industrial display engineered for wet, dusty and outdoor commercial environments. The front bezel meets IP65 for water and dust protection and the unit supports panel and VESA mounting plus common video inputs for embedded systems integration.

Key Features

• 17", 1280 x 1024 resolution
• VGA (standard) and HDMI (optional) inputs
• Panel mount and VESA mount options
• Front-side IP65 waterproof and dustproof
• Wide operating temperature: -20°C to 60°C

Highlights / Functional Description
Front IP65 design: Front bezel with O-ring sealing prevents ingress of water and particles while keeping a narrow bezel suitable for embedded installations.

Touch and surface options: Available with 5-wire resistive touch or protection glass without touch to fit different operator needs; USB interface provided for touch input.

Signal interfaces: Standard VGA with optional HDMI and DVI for integration with embedded boards and industrial controllers.

Installation: Designed for easy panel or VESA installation in cabinets, kiosks or racks; fanless metal enclosure for reliable operation.

Outdoor kiosks: When correctly integrated the front IP65 rating makes the display suitable for parking, fuel station, pool and other outdoor kiosk applications.

Certifications

• CE
• FCC

Characteristics / Technical Specifications

• Model: S17L500-IPA1WT
• Brand: Winmate
• Display Size: 17.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Display Color: 16.7M Colors
• Active Area: 337.920 x 270.336 mm
• Operating Humidity: 30% to 90% RH, Non-Condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -25°C to 65°C
• Certifications: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 440 x 360 x 65 mm
• Cut out: 412 x 332 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessories Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
