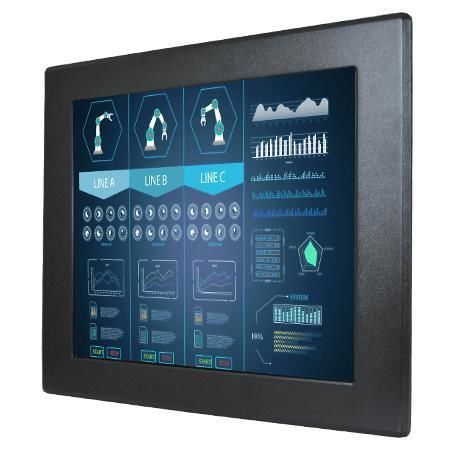

Touch screen monitor S17L500-IPA1TR

resistive touch screenfor industrial machinesfor digital signage

Overview
Winmate 17-inch front IP65 transflective panel monitor S17L500-IPA1TR designed for industrial and commercial applications, providing front-side waterproof and dustproof protection for use in wet and dusty environments such as factory automation, outdoor kiosks and pool/spa kiosks. The product supports multiple signal interfaces and flexible touch or protection glass options to meet different application requirements.

Key Features

• 17-inch, 1280 x 1024
• VGA (default) and optional HDMI/DVI inputs
• Panel mount and VESA mount
• Transflective panel with 400 nits brightness
• Front IP65 waterproof/dustproof design

Certifications

• CE
• FCC

Product Highlights

• Front IP65 design seals the bezel to prevent ingress of water and dust while maintaining a narrow bezel suitable for cabinet and kiosk installations.
• Optional resistive touch or protection glass (no touch) to match operator requirements in industrial environments.
• Flexible connectivity with VGA, optional HDMI and DVI and USB for touch interface for easy integration with embedded boards and systems.
• Fanless metal enclosure with aluminum bezel and O-ring rear sealing enables reliable operation within specified temperature and humidity ranges.

Technical Specifications

• Size: 17.0 inches
• Touch / Glass: Resistive touch (optional); Protection glass w/o touch (optional)
• Resolution: 1280 x 1024
• Panel Brightness: 400 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 85/85/80/80
• Display Color: 16.2M colors
• Active Area: 337.920 x 270.336 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Line-in 3.5mm (optional); 2 x speakers (optional)
• Dimensions: 440 x 360 x 65 mm
• Cut-out: 412 x 332 mm
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Accessories included: VGA cable; HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (varies by product)
• Power Rating: 12V DC input (24V DC optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
