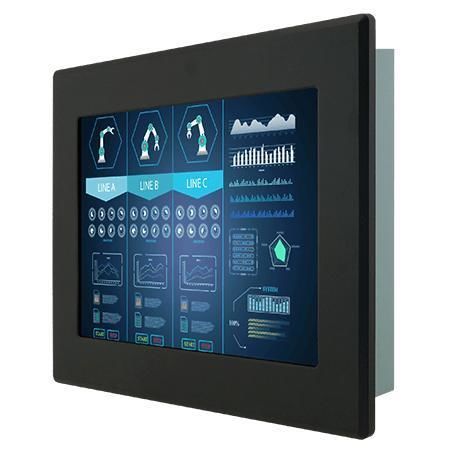

LCD monitor R12L600-IPM2WT

resistive touch screenwith touchscreenindustrial

Overview
Winmate R12L600-IPM2WT is a 12.1-inch front IP65 wide-temperature display designed for wet, dusty and outdoor industrial or commercial applications. It combines a sealed front bezel with common video interfaces and flexible touch/surface options for easy integration into control panels, kiosks and automation equipment.

Key Features

• 12.1" 1024 x 768 front IP65 wide-temperature display
• VGA (standard) and HDMI/DVI (optional) inputs
• Panel mount and VESA mount options
• Front IP65 waterproof and dustproof design
• Wide operating temperature: -20°C to 60°C
• Multiple touch/surface options: resistive (default), protection glass (no touch) or SAW (optional)

Certifications

• CE
• FCC

Product Details
The front IP65 sealing provides reliable protection against water and dust while keeping a compact, narrow bezel suitable for embedded kiosks and control panels.

Touch and surface options allow selection according to the application: resistive touch as standard, optional protection glass without touch or SAW touch for different operational needs. USB touch interface is provided for plug-and-play integration.

Video connectivity includes VGA by default with HDMI and DVI available depending on configuration, facilitating integration with embedded boards and industrial PCs.

Installation is simplified by a rubber O-ring at the rear of the front bezel to seal between the bezel and the customer's fixture, enabling straightforward panel or rack mounting.

Specifications

• Size: 12.1 inches
• Resolution: 1024 x 768
• Panel Brightness: 500 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 89/89/89/89
• Display Colors: 16.2M Colors
• Active Area: 245.76 x 184.32 mm
• Operating Humidity: 30% to 90% RH, non-condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -25°C to 65°C
• USB: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5mm) optional; 2 x speaker optional
• Dimensions: 324 x 274 x 43 mm
• Cut out: 303 x 252 mm
• Weight: 2.5 kg
• Mounting: Panel mount / VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power rating: 12V DC input (24V DC optional)
• Control buttons: 5 keys ( -, +, Power, Esc, Enter )
• Accessories (included): VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
