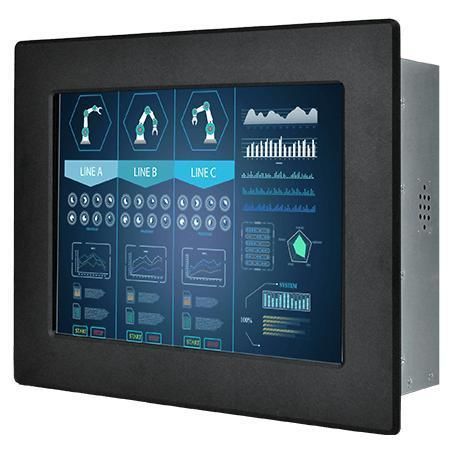

LCD monitor R10L600-IPP1

resistive touch screenoutdoorfor industrial machines

Overview
Winmate Front IP65 Display R10L600-IPP1 is a 10.4" front-IP65 rated industrial display designed for embedded, commercial and industrial applications. It delivers reliable water and dust protection at the front while maintaining a compact, narrow-bezel profile for panel or VESA installation.

Key features

• 10.4" LCD, 800 × 600 (SVGA)
• Panel brightness 600 nits, contrast ratio 400:1
• VGA (default), HDMI (optional), DVI (optional)
• Panel mount and VESA mount options; metal enclosure, fanless design
• Front IP65 sealing for water and dust resistance
• Touch options: resistive (default), protection glass (no touch), SAW (optional)

Front IP65 waterproof design
The front bezel is sealed to IP65 standards to prevent ingress of water and dust when the display is correctly integrated into a customer enclosure, ensuring reliable operation in damp or dusty environments.

Touch and surface options
Flexible surface configurations support a resistive touch screen by default, optional protection glass without touch, or SAW touch, enabling adaptation to operator workflows and environmental requirements.

Multiple signal interfaces
Standard VGA provides easy integration with embedded boards; HDMI and DVI are available as options. USB is provided for touch functionality; audio line-in and speakers are optional.

Easy installation
The rear O-ring rubber seal on the front bezel simplifies sealing to the customer’s panel or fixture. The display supports straightforward panel or VESA mounting for cabinets, racks and kiosks.

Suitable for outdoor kiosks and industrial sites
When properly mounted in a conditioned enclosure, the front IP65 protection helps the display withstand water, humidity, temperature variations, sunlight and airborne particles — suitable for outdoor kiosks (parking, gas stations), pool and SPA terminals, and factory automation interfaces.

Certifications
CE, FCC

Technical specifications

• Model: R10L600-IPP1
• Display size: 10.4 inches
• Resolution: 800 × 600
• Panel brightness: 600 nits
• Contrast ratio: 400:1
• Viewing angles: 70 / 70 / 70 / 60
• Display color: 262K colors
• Active area: 211.2 × 158.4 mm
• Touch / Glass: Resistive (default); Protection glass w/o touch (optional); SAW (optional)
• Operating humidity: 10%–90% RH, non‑condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB: 1 × USB for touch
• Video: 1 × VGA (default); 1 × HDMI (optional); 1 × DVI (optional)
• Audio: Audio line‑in (3.5 mm) optional; 2 × speaker optional
• Dimensions: 284 × 234 × 43 mm
• Weight: 1.76 kg
• Mounting: Panel mount / VESA mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 12V DC input (24V DC optional); 100~240V AC→DC adapter included depending on configuration
• Controls: 5 keys (‑, +, Power, Esc, Enter)
• Accessories included: VGA cable, HDMI cable, AC→DC adapter, power cord, manual, VESA screws (varies by configuration)
