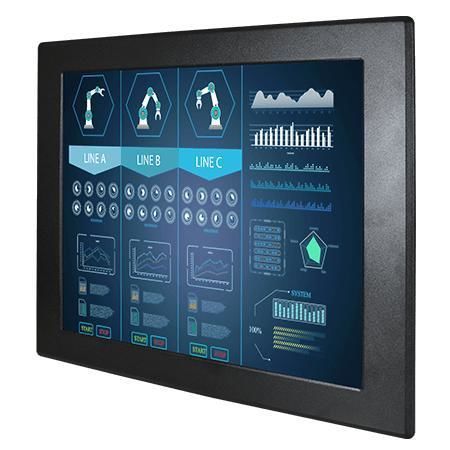

Resistive touch screen monitor R19L300-IPM2

industrialoutdoorfor industrial machines

Overview
The Winmate R19L300-IPM2 is a 19" front IP65 panel-mount display designed for wet, dusty and outdoor industrial environments. The compact narrow bezel and IP65-rated front make it suitable for factory automation, outdoor kiosks, pool and spa kiosks and other commercial installations where front-side sealing is required.

Key Features

• 19" diagonal, 1280 x 1024 resolution
• VGA input (default); HDMI and DVI optional
• Panel mount and VESA mount support
• Front IP65 waterproof and dustproof bezel
• Multiple surface options: resistive touch (default), protection glass (no touch), SAW touch (optional)
• Fanless design, metal housing with aluminum bezel

Product Details
The front IP65 bezel with rear rubber O-ring provides a sealed interface between the display and the customer fixture to prevent water and dust ingress when correctly installed. Flexible surface options allow selection of resistive touch (default), protection glass without touch, or SAW touch to match application requirements. Standard video interface is VGA with HDMI and DVI available as options to integrate with embedded boards and systems. USB is provided for touch communication.

Certifications

• CE
• FCC

Technical specifications

• Display size: 19.0 inches
• Touch / glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1280 x 1024
• Panel brightness: 300 nits
• Contrast ratio: 2000:1
• View angles: 89, 89, 89, 89
• Display color: 16.7M Colors
• Active area: 376.32 x 301.06 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IO ports: USB 1 x (touch); Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) optional; 2 x speaker optional
• Mechanical dimension: 474 x 384 x 63 mm
• Cut out: 446 x 356 mm
• Weight: 6.7 kg
• Mounting: VESA mount / panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power rating: 12V DC input (24V DC optional)
• Control buttons: 5 keys: -, +, Power, Esc, Enter
• Included accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (varies by product)

Applications

• Factory automation and machine control
• Outdoor kiosks and self-service terminals
• Pool, spa and leisure kiosks
• Parking, fuel stations and other outdoor information points
