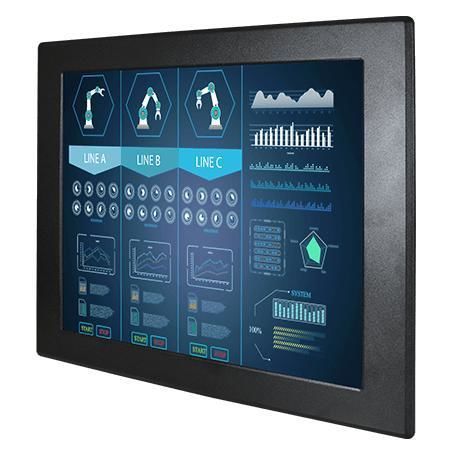

LCD monitor R19L300-IPA3WT

resistive touch screenindustrialoutdoor

Overview
Winmate R19L300-IPA3WT is a 19-inch front IP65 wide temperature display designed for industrial and commercial applications where the front bezel requires waterproof and dustproof protection and the system must operate across a wide temperature range.

Key Features

• 19.0 inches, 1280 x 1024 resolution
• Front IP65 waterproof and dustproof bezel
• VGA input (default); HDMI and DVI optional
• Panel mount and VESA mount support
• Wide operating temperature: -20°C to 60°C

Design & Durability
The front IP65 design provides water and dust resistance for the front bezel while keeping a compact narrow-bezel form factor. The metal housing with aluminum bezel and fanless construction suits cabinet, rack or kiosk installations in wet or dusty environments.

Touch & Operation
Surface options include resistive touch (default), protection glass without touch (optional) and SAW touch (optional). A USB port is provided for touch interface to enable intuitive operator interaction in industrial contexts.

Interfaces
Equipped with common video inputs for integration: VGA (default), optional HDMI and optional DVI. Optional audio line-in (3.5 mm) and speakers are available. USB is provided for touch connectivity.

Installation & Mechanical
Rear O-ring on the front bezel seals against customer fixtures to prevent ingress of water and dust. Supports panel mount and VESA mount. Dimensions and cut-out are optimized for easy integration: 470 x 384 x 63 mm; cut out 446 x 356 mm.

Applications
Suitable for outdoor and industrial kiosks, factory automation HMIs, pool and SPA kiosks, parking and fuel-station terminals, and other installations where the display front must resist water, humidity, temperature extremes, sunlight and airborne particles.

Certifications

• CE
• FCC

Technical Specifications

• Model: R19L300-IPA3WT
• Display size: 19.0 inches
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80 (typical)
• Display colors: 16.7M colors
• Active area: 376.32 x 301.06 mm
• Touch / Glass: Resistive Touch Screen (default); Protection glass w/o touch (optional); SAW touch (optional)
• Operating humidity: 30% to 90% RH, non-condensing
• Operating temperature: -20°C to 60°C
• Storage temperature: -25°C to 65°C
• USB: 1 x USB for touch
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x Speaker (optional)
• Dimensions: 470 x 384 x 63 mm
• Cut out (panel): 446 x 356 mm
• Weight: 6.6 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power: 12V DC in (default); 24V DC in (optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
• Accessories included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
