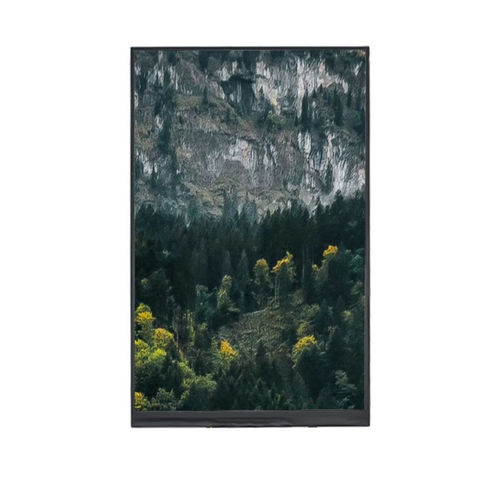

TFT LCD display module YX09020542416BB

color1024 x 6009"

Product overview
The YX09020542416BB is a 9.0-inch TFT LCD display module with 1024×600 (WSVGA) resolution and an RGB interface, engineered for industrial HMI, control panels and embedded display systems requiring a larger viewing area and reliable long-term operation. The Normally Black display mode and transmissive TFT structure deliver balanced contrast and clear image output for indoor and semi-industrial environments.

Basic specifications
Display size: 9.0 inch
LCD type: TFT-LCD, transmissive
Display mode: Normally Black
Resolution: 1024 (RGB) × 600
Active area: 195.84 × 114.60 mm
Outline dimensions: 210.70 × 126.50 × 4.00 mm
Pixel pitch: 0.19125 × 0.19125 mm
Pixel arrangement: RGB vertical stripe
Viewing direction: 6 O'Clock (TN)
Interface: RGB
Backlight: White LED

Mechanical drawing
Mechanical drawing and dimensional illustration available to support integration, fixing and bezel design during product development.

Optical characteristics
Resolution: 1024 × 600
Contrast ratio: 800:1
Luminance (typ): 350 cd/m²
Luminance uniformity: 80%
Viewing angles (CR ≥ 10): 70° / 70° / 60° / 70°
Response time (typ): 25 ms

Operating conditions
Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C
Humidity: ≤ 90% RH (60°C)

Technical features

• Model: YX09020542416BB
• Product type: 9.0-inch TFT LCD module
• Resolution: 1024 × 600 (RGB)
• Interface: RGB
• Display mode: Normally Black
• Backlight: White LED
• Active area: 195.84 × 114.60 mm
• Outline dimensions: 210.70 × 126.50 × 4.00 mm
• Pixel pitch: 0.19125 × 0.19125 mm
• Pixel arrangement: RGB vertical stripe
• Viewing direction: 6 O'Clock (TN)
• Typical luminance: 350 cd/m²
• Contrast ratio: 800:1
• Viewing angles (CR≥10): 70° / 70° / 60° / 70°
• Response time: 25 ms
• Operating temp.: -20°C ~ +70°C
• Storage temp.: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
