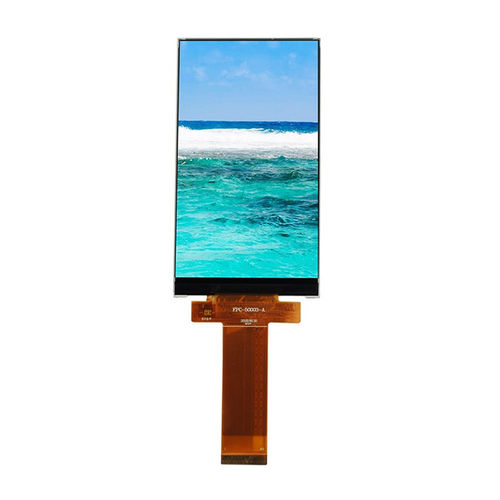

TFT LCD display module YX45002A

IPScolorgraphic

Product Overview
The YX45002A is a 4.5-inch high-resolution IPS TFT-LCD display module featuring 480×854 pixels and a MIPI interface, designed for handheld devices, medical terminals, portable instruments, and embedded HMI systems. With IPS technology and All-O'Clock wide viewing angle, the display delivers stable colors, high contrast, and excellent readability from any direction. Powered by the JD9161Z driver IC, it ensures smooth signal processing and reliable long-term performance in demanding embedded environments. The portrait-format 4.5-inch screen is especially suitable for mobile terminals, data collection devices, smart control panels, and professional handheld equipment.

Key Features

• 4.5 inch IPS TFT-LCD, transmissive
• Resolution 480 (RGB) × 854
• MIPI interface
• Driver IC: JD9161Z
• All-O'Clock wide viewing angle (IPS)
• Portrait-format display for embedded/mobile applications

Basic Specifications
Display Size: 4.5 inch
LCD Type: IPS TFT-LCD, Transmissive
Resolution: 480 (RGB) × 854
Active Area: 55.44 × 98.64 mm
Outline Dimensions: 59.17 × 108.14 × 1.81 mm
Pixel Pitch: 0.1155 × 0.1155 mm
Viewing Direction: All-O'Clock
Driver IC: JD9161Z
Interface: MIPI

Optical Characteristics
Resolution: 480 × 854
Contrast Ratio: 800 : 1
Color Gamut: 60%
Luminance: 250 cd/m²
Luminance Uniformity: 80%
Viewing Angle (CR ≥ 10): 80° (All directions)
Response Time: 30 ms

Operating Conditions
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Mechanical Drawing
Mechanical drawing and dimensional artwork provided for integration and mounting verification.

Technical Specifications

• Model: YX45002A
• Display size: 4.5 inch
• Resolution: 480 × 854 (RGB)
• LCD type: IPS TFT, transmissive
• Active area: 55.44 × 98.64 mm
• Outline dimensions: 59.17 × 108.14 × 1.81 mm
• Pixel pitch: 0.1155 × 0.1155 mm
• Viewing direction: All-O'Clock (wide viewing)
• Driver IC: JD9161Z
• Interface: MIPI
• Contrast ratio: 800:1
• Luminance: 250 cd/m²
• Response time: 30 ms
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)
