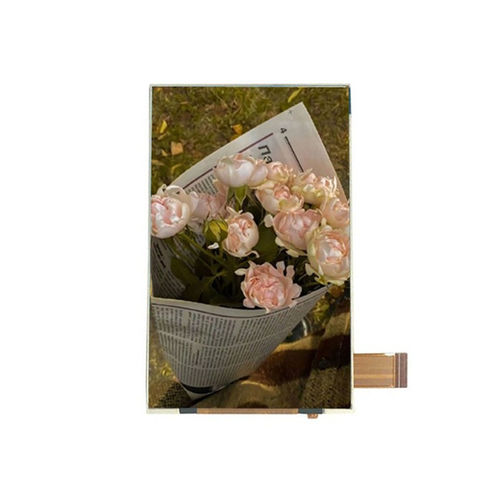

TFT LCD display module YX40206ACT

IPScapacitive touch screencolor

Product Overview
The YX40206ACT from Yousee is a 4.02-inch high-resolution IPS TFT LCD module with 640×1136 pixels, MIPI DSI interface and an integrated capacitive touch panel. Designed for smart terminals, medical equipment, industrial HMI and embedded Android/Linux systems, it offers high pixel density, wide viewing angles and a slim total thickness of 3.59 mm (LCM + touch), suitable for compact premium devices.

Basic Specifications

• Model: YX40206ACT
• Display size: 4.02 inch
• LCD type: IPS TFT-LCD, transmissive
• Resolution: 640 (RGB) × 1136 pixels
• Active area: 49.92 × 88.61 mm
• Outline dimensions: 61.5 × 112.6 × 3.59 mm
• Pixel pitch: 0.078 × 0.078 mm
• Viewing direction: All-O’Clock (wide viewing angle IPS)
• Driver IC: HX8394F
• Interface: MIPI DSI
• Touch panel: Integrated capacitive touch (CTP)

Optical Characteristics

• Resolution: 640 × 1136
• Contrast ratio: 800:1
• Color gamut: 60% NTSC
• Luminance: 450 cd/m²
• Luminance uniformity: 80%
• Viewing angle (CR ≥ 10): 80° (all directions)
• Response time: 25 ms

Operating Conditions

• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)

Mechanical / Drawing

• Outline dimensions: 61.5 × 112.6 × 3.59 mm (total thickness LCM + touch 3.59 mm)
• Active area: 49.92 × 88.61 mm

Applications

• Smart terminals
• Medical devices
• Industrial HMI
• Handheld controllers
• Embedded Android or Linux systems

Technical Specifications

• Display size: 4.02 inch
• Resolution: 640 (RGB) × 1136 pixels
• LCD type: IPS TFT-LCD, transmissive
• Pixel pitch: 0.078 × 0.078 mm
• Driver IC: HX8394F
• Interface: MIPI DSI
• Touch: Integrated capacitive touch panel (CTP)
• Contrast ratio: 800:1
• Color gamut: 60% NTSC
• Luminance: 450 cd/m²
• Luminance uniformity: 80%
• Viewing angle (CR ≥ 10): 80° (all directions)
• Response time: 25 ms
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)
