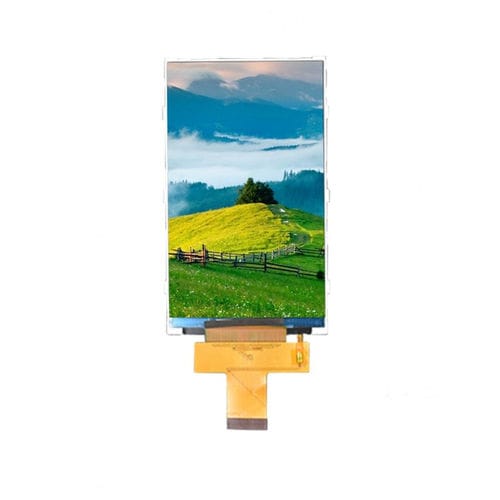

TFT LCD display module YX43038A

IPScolor480 x 272

Overview
The YX43038A is a 4.3-inch IPS TFT LCD display module with 480×272 resolution and a 24-bit RGB interface. It is designed for industrial control panels, medical terminals and embedded HMI systems requiring wide viewing angles and stable image output.

Features

• IPS wide-viewing technology with All-O’Clock viewing direction for consistent color and high contrast across viewing angles
• 24-bit RGB interface for direct connection to MCUs, SoCs and embedded platforms
• Stable real-time image output and smooth UI performance for professional display systems

Basic Specifications

• Model: YX43038A
• Brand: Yousee
• Display size: 4.3 inch
• Resolution: 480 (RGB) × 272
• LCD type: IPS TFT-LCD, transmissive
• Interface: 24-bit RGB
• Active area: 95.04 × 53.86 mm
• Outline dimensions: 105.5 × 67.2 × 3.0 mm
• Pixel pitch: 0.198 × 0.198 mm
• Viewing direction: All-O’Clock

Optical Characteristics

• Contrast ratio (typ.): 800 : 1
• Color gamut: 60%
• Luminance: 450 cd/m²
• Luminance uniformity: 80%
• Viewing angle (CR ≥ 10): 80° (all directions)
• Response time: 25 ms

Operating Conditions

• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)

Technical Specifications

• Pixel pitch: 0.198 × 0.198 mm
• Active area: 95.04 × 53.86 mm
• Outline dimensions: 105.5 × 67.2 × 3.0 mm
• Response time: 25 ms
• Contrast ratio: 800 : 1
• Color gamut: 60%
