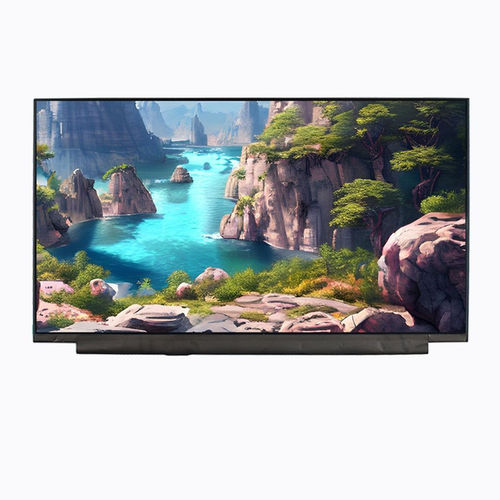

TFT LCD display module YX18522425217FA

IPScolor1366 x 768

Product Overview
The YX18522425217FA is an 18.5-inch IPS TFT-LCD display module with 1366×768 (WXGA) resolution and an LVDS interface, engineered for industrial monitors, control panels, HMI systems and embedded display applications that require wide viewing angles and stable long-term supply. IPS technology with All-O'Clock viewing direction ensures consistent brightness, accurate color reproduction and stable contrast from multiple angles, making the module suitable for operator-facing interfaces and information displays. The LVDS interface provides reliable signal transmission and improved immunity to electrical interference for industrial environments.

Basic Specifications
Display size: 18.5 inch
LCD type: IPS TFT-LCD (transmissive)
Display mode: Normally Black
Resolution: 1366 (RGB) × 768 (WXGA)
Active area: 409.80 × 230.40 mm
Outline dimensions: 430.40 × 254.60 × 9.60 mm
Pixel pitch: 0.300 × 0.300 mm
Pixel arrangement: RGB vertical stripe
Viewing direction: All-O'Clock (IPS)
Interface: LVDS
Brightness: 250 cd/m²
Backlight: White LED

Mechanical Drawing
Mechanical drawing and product illustrations are available for detailed dimensions and mounting information.

Optical Characteristics
Resolution: 1366 × 768
Contrast ratio: 1000 : 1
Color gamut: 72% NTSC
Luminance: 250 cd/m²
Luminance uniformity: 80%
Viewing angle (CR ≥ 10): 85° / 85° / 85° / 85°
Response time: 30 ms

Operating Conditions
Operating temperature: 0°C to +50°C
Storage temperature: -20°C to +60°C

Technical specifications

• Model: YX18522425217FA
• Brand: Yousee
• Display size: 18.5 inch
• Resolution: 1366×768 (WXGA)
• Panel type: IPS TFT-LCD (transmissive)
• Interface: LVDS
• Brightness: 250 cd/m²
• Backlight: White LED
• Viewing direction: All-O'Clock (IPS)
• Contrast ratio: 1000:1
• Color gamut: 72% NTSC
• Response time: 30 ms
• Operating temperature: 0°C to +50°C
• Outline dimensions: 430.40 × 254.60 × 9.60 mm
