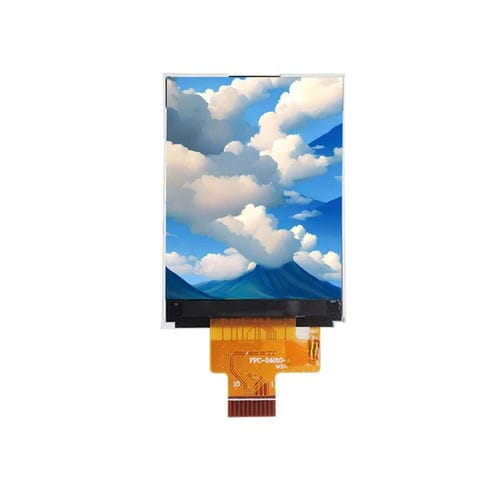

TFT LCD display module YX24058A

colorhigh-resolution480 x 640

Overview
The YX24058A is a 2.4-inch high-resolution MIPI DSI TFT-LCD display module by Yousee, offering 480×640 RGB resolution and All O’Clock wide viewing angle. Driven by the ST7701S IC, it supports high-speed data transfer for Linux-, Android- and high-performance embedded platforms. Its compact, slim outline and high pixel density make it suitable for portable instruments, smart controllers, POS terminals and medical devices where limited space and clear visualization are required.

Basic specifications
Display Size: 2.4 inch
LCD Type: TFT-LCD, transmissive
Resolution: 480 (RGB) × 640
Active Area: 36.72 × 48.96 mm
Outline Dimensions: 41.72 × 60.26 × 2.15 mm
Pixel Pitch: 0.0765 × 0.0765 mm
Viewing Direction: All O’Clock
Driver IC: ST7701S
Interface: MIPI DSI

Operating conditions
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Mechanical drawing
A mechanical drawing and outline image are provided on the product page to support integration and mounting during design and assembly.

Technical specifications

• Model: YX24058A
• Display size: 2.4 inch
• Resolution: 480×640 (RGB)
• LCD type: TFT-LCD, transmissive
• Active area: 36.72 × 48.96 mm
• Outline dimensions: 41.72 × 60.26 × 2.15 mm
• Pixel pitch: 0.0765 × 0.0765 mm
• Viewing direction: All O’Clock (wide viewing angle)
• Driver IC: ST7701S
• Interface: MIPI DSI
• Typical applications: portable instruments, smart controllers, POS terminals, medical devices
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)
