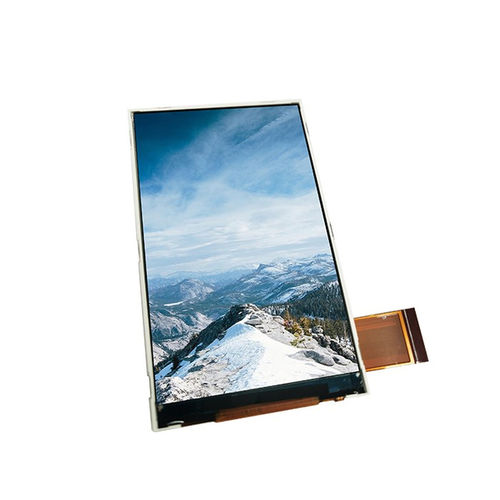

TFT LCD display module YX35023A

IPScolor480 x 800

Product Overview
The YX35023A is a 3.5-inch TFT LCD module by Yousee with 480×800 RGB resolution and a dual 3SPI + RGB interface. Driven by the ST7701S IC, it supports MCU-driven SPI control and high-speed RGB video input, making it suitable for industrial HMI, medical devices, smart terminals and embedded systems where a compact, information-dense display is required.

Basic Specifications

• Model: YX35023A
• Brand: Yousee
• Display size: 3.5 inch
• Resolution: 480 (RGB) × 800
• LCD type: TFT-LCD, transmissive
• Active area: 45.36 × 75.60 mm
• Outline dimensions: 51.32 × 86.61 × 2.20 mm
• Pixel pitch: 0.0945 × 0.0945 mm
• Viewing direction: All O’Clock (wide viewing angle)
• Driver IC: ST7701S
• Interface: 3SPI + RGB (dual interface)

Mechanical Drawing
Mechanical drawing is provided for the module; outline dimensions and mounting details follow the Basic Specifications for integration into enclosures and PCBs.

Optical Characteristics

• Resolution: 480 × 800
• Contrast ratio: 600 : 1 (typical)
• Color gamut: 60% (typical)
• Luminance: 500 cd/m² (typical)
• Luminance uniformity: 80% (typical)
• Viewing angle (CR ≥ 10): 70° (all directions)
• Response time: 25 ms (typical)

Operating Conditions

• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)

Applications

• Industrial HMI and control panels
• Medical equipment displays
• Smart terminals and handheld devices
• Embedded systems running Android or Linux-based UIs

Technical specifications

• Active area: 45.36 × 75.60 mm
• Outline dimensions: 51.32 × 86.61 × 2.20 mm
• Pixel pitch: 0.0945 × 0.0945 mm
• Interface: 3SPI + RGB
• Driver IC: ST7701S
• Contrast ratio: 600 : 1
• Luminance: 500 cd/m²
• Viewing direction: All O’Clock
• Response time: 25 ms
