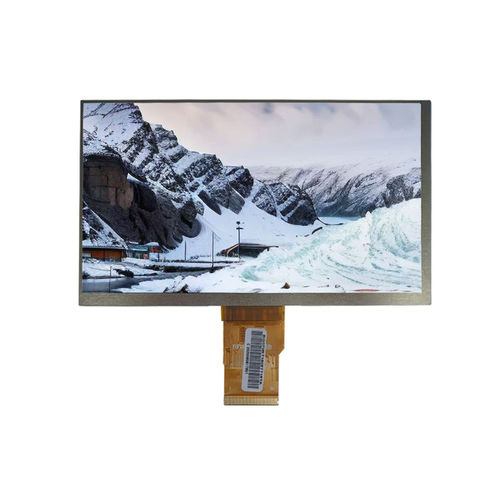

TFT LCD display module YX07021312416BC

TNcolor1024 x 600

Product Overview
The YX07021312416BC by Yousee is a 7.0-inch TFT-LCD display module with 1024×600 (WSVGA) resolution and a 24-bit RGB interface. Engineered for industrial control panels, HMI systems and embedded automation displays, it offers improved image detail over standard WVGA and a Normally White transmissive mode suitable for indoor industrial environments.

Key Features

• Display Size: 7.0 inch
• Resolution: 1024 (RGB) × 600 (WSVGA)
• Interface: 24-bit RGB
• LCD Type: TFT-LCD, Transmissive
• Display Mode: Normally White
• Viewing Direction: 6 O'Clock (TN)

Basic Specifications (table)
Display Size : 7.0 inch
LCD Type : TFT-LCD, Transmissive
Display Mode : Normally White
Resolution : 1024 (RGB) × 600
Active Area : 154.21 × 85.92 mm
Outline Dimensions : 165.0 × 100.0 × 3.5 mm
Pixel Pitch : 0.1506 × 0.1432 mm
Pixel Arrangement : RGB Vertical Stripe
Viewing Direction : 6 O'Clock
Interface : 24-bit RGB
Backlight : White LED

Mechanical Drawing
Mechanical drawings and dimensional diagrams are provided for integration and mounting reference to facilitate installation in control cabinets and embedded housings.

Optical Characteristics (table)
Resolution : 1024 × 600
Contrast Ratio : 500 : 1
Luminance : 300 cd/m² (typical)
Luminance Uniformity : 80%
Viewing Angle (CR ≥ 10) : 70° / 70° / 50° / 70° (typ.)
Response Time : 25 ms

Operating Conditions (table)
Operating Temperature : -10°C ~ +60°C
Storage Temperature : -20°C ~ +70°C

Characteristics / Technical specifications

• Model: YX07021312416BC
• Display size: 7.0 inch
• Resolution: 1024×600 (RGB)
• Active area: 154.21 × 85.92 mm
• Outline dimensions: 165.0 × 100.0 × 3.5 mm
• Pixel pitch: 0.1506 × 0.1432 mm
• Pixel arrangement: RGB vertical stripe
• LCD type: TFT-LCD, transmissive
• Display mode: Normally White
• Viewing direction: 6 O'Clock (TN)
• Interface: 24-bit RGB
• Backlight: White LED
• Luminance (typical): 300 cd/m²
• Contrast ratio (typical): 500:1
• Viewing angle (CR ≥ 10): 70°/70°/50°/70°
• Response time: 25 ms
• Operating temperature: -10°C to +60°C
• Storage temperature: -20°C to +70°C
• Typical applications: industrial control panels, HMI systems, embedded displays in automation equipment
