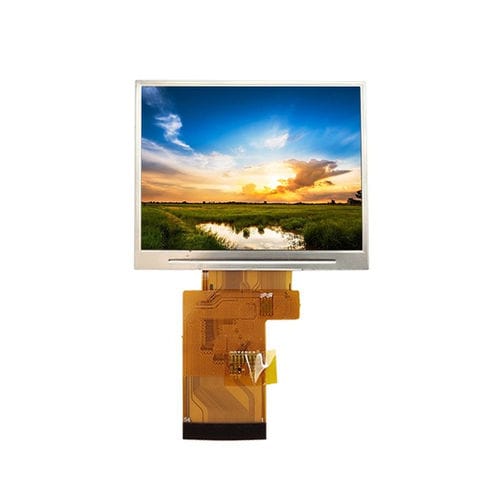

TFT LCD display module YX35033 series

IPScolor320 x 240

Product Overview
The YX35033A is a 3.5-inch TFT LCD module with 320×240 resolution and a 24-bit RGB interface, intended for industrial control panels, handheld devices and embedded systems. Driven by the ST7272 driver IC, it offers wide viewing characteristics and stable image quality for multi-position displays.

Key Features

• Display size: 3.5 inch
• Resolution: 320 (RGB) × 240
• Interface: 24-bit RGB
• Driver IC: ST7272
• Applications: industrial control panels, handheld devices, embedded systems, control consoles, meters
• Wide viewing angle with consistent visibility

Basic Specifications (excerpt)
Display Size: 3.5 inch
LCD Type: TFT-LCD, transmissive
Resolution: 320 (RGB) × 240
Active Area: 70.08 × 52.56 mm
Outline Dimensions: 76.9 × 63.9 × 3.1 mm
Pixel Pitch: 0.219 × 0.219 mm
Viewing Direction: All-O'Clock (wide viewing direction / IPS)
Driver IC: ST7272
Interface: 24-bit RGB

Optical Characteristics (excerpt)
Contrast Ratio: 500 : 1
Color Gamut: 60%
Luminance: 350 cd/m²
Luminance Uniformity: 60%
Viewing Angle (CR ≥ 10): 70°–80° (all directions)
Response Time: 16 ms

Operating Conditions
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Model Variants / Related Designations

• YX35033A
• YX35033ACT
• YX35033ART

Technical Specifications (summary)

• Display size: 3.5 inch
• Resolution: 320×240 (RGB)
• LCD type: TFT-LCD, transmissive
• Active area: 70.08 × 52.56 mm
• Outline dimensions: 76.9 × 63.9 × 3.1 mm
• Pixel pitch: 0.219 × 0.219 mm
• Viewing direction: All-O'Clock / IPS
• Driver IC: ST7272
• Interface: 24-bit RGB
• Contrast ratio: 500:1
• Color gamut: 60%
• Luminance: 350 cd/m²
• Luminance uniformity: 60%
• Viewing angle (CR ≥ 10): 70°–80° (all directions)
• Response time: 16 ms
• Operating temperature: -20°C ~ +70°C
• Storage temperature: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
