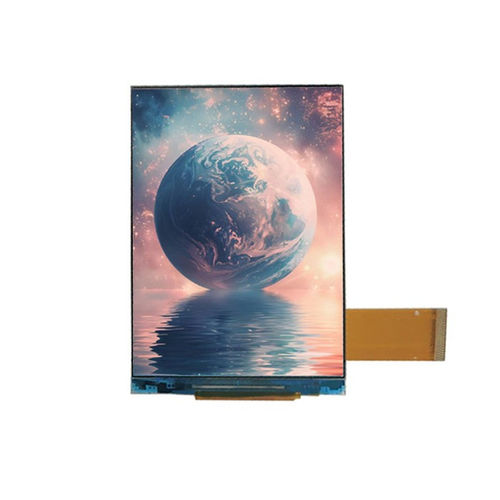

TFT LCD display module YX35024A

TNcolor320 x 480

Product Overview
The YX35024A is a 3.5-inch TFT LCD display module with 320×480 resolution supporting MCU and RGB dual interfaces. It is intended for industrial control panels, handheld terminals and embedded HMI systems.
The module uses a TN transmissive TFT panel optimized for 12 O'Clock viewing, providing clear front-view readability, stable luminance and consistent performance in fixed-orientation applications such as meters, control consoles and portable instruments.
Driven by the ILI9488 driver IC, the YX35024A supports MCU control and high-speed RGB video input, offering designers flexible integration options to balance cost, throughput and system complexity.

Basic Specifications
Display Size: 3.5 inch
LCD Type: TN TFT-LCD, Transmissive
Resolution: 320 (RGB) × 480
Active Area: 48.96 × 73.44 mm
Outline Dimensions: 54.48 × 84.71 × 2.30 mm
Pixel Pitch: 0.08625 × 0.08625 mm
Viewing Direction: 12 O'Clock
Driver IC: ILI9488
Interface: MCU / RGB

Optical Characteristics
Resolution: 320 × 480
Contrast Ratio: 800 : 1
Color Gamut: 60%
Luminance: 300 cd/m²
Luminance Uniformity: 80%
Viewing Angle (CR ≥ 10): 70° (L/R), 70° (U), 60° (D)
Response Time: 25 ms

Operating Conditions
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Mechanical
Outline and mechanical drawing are provided on the product page for dimensions and mounting details.

Technical Specifications

• Model: YX35024A
• Brand: Yousee
• Display Size: 3.5 inch
• Resolution: 320 × 480 (RGB)
• LCD Type: TN, Transmissive
• Driver IC: ILI9488
• Interface: MCU / RGB
• Active Area: 48.96 × 73.44 mm
• Outline Dimensions: 54.48 × 84.71 × 2.30 mm
• Pixel Pitch: 0.08625 × 0.08625 mm
• Viewing Direction: 12 O'Clock
• Contrast Ratio: 800 : 1
• Color Gamut: 60%
• Luminance: 300 cd/m²
• Luminance Uniformity: 80%
• Viewing Angle (CR ≥ 10): 70° (L/R), 70° (U), 60° (D)
• Response Time: 25 ms
• Operating Temperature: -20°C ~ +70°C
• Storage Temperature: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
