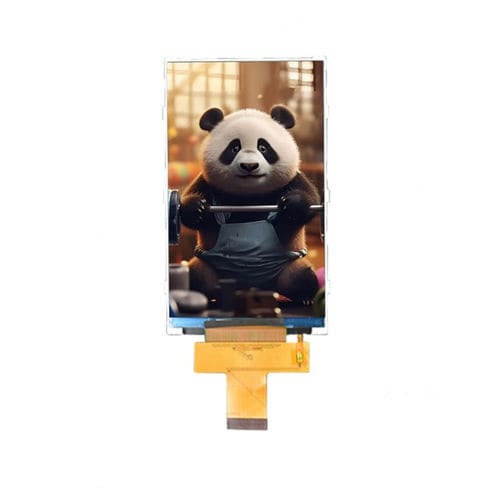

TFT LCD display module YX43025A

IPScolor480 x 272

Description
The YX43025A is a 4.3-inch IPS TFT LCD display module with 480×272 resolution and MCU & SPI interface options, designed for industrial control panels, embedded systems, handheld devices and HMI applications.

Key features

• 4.3-inch IPS TFT-LCD, transmissive
• Resolution 480 (RGB) × 272
• Multiple interface modes: MCU 8/9/16-bit, 3-/4-line SPI, Dual SPI
• All‑O’Clock viewing (wide viewing angles)
• Luminance 500 cd/m², contrast ratio 800:1

Model variants

• YX43025A
• YX43025ART

Basic Specifications (table)
Item — Specification
Display Size — 4.3 inch
LCD Type — IPS TFT-LCD, Transmissive
Resolution — 480 (RGB) × 272
Active Area — 95.04 × 53.86 mm
Outline Dimensions — 105.5 × 67.2 × 3.0 mm
Pixel Pitch — 0.198 × 0.198 mm
Viewing Direction — All-O’Clock
Interface — MCU 8/9/16-bit, 3-/4-line SPI, Dual SPI

Optical Characteristics (table)
Parameter — Typical
Resolution — 480 × 272
Contrast Ratio — 800 : 1
Color Gamut — 60%
Luminance — 500 cd/m²
Luminance Uniformity — 80%
Viewing Angle (CR ≥ 10) — 80° (All directions)
Response Time — 25 ms

Operating Conditions (table)
Item — Range
Operating Temperature — -20°C ~ +70°C
Storage Temperature — -30°C ~ +80°C
Humidity — ≤ 90% RH (60°C)

Technical specifications

• Model: YX43025A
• Display Size: 4.3 inch
• Resolution: 480 (RGB) × 272
• LCD Type: IPS TFT-LCD, Transmissive
• Active Area: 95.04 × 53.86 mm
• Outline Dimensions: 105.5 × 67.2 × 3.0 mm
• Pixel Pitch: 0.198 × 0.198 mm
• Viewing Direction: All-O’Clock (IPS)
• Interface options: MCU 8/9/16-bit, 3-line SPI, 4-line SPI, Dual SPI
• Contrast Ratio: 800:1
• Color Gamut: 60%
• Luminance: 500 cd/m²
• Luminance Uniformity: 80%
• Viewing Angle (CR ≥ 10): 80° (all directions)
• Response Time: 25 ms
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)
