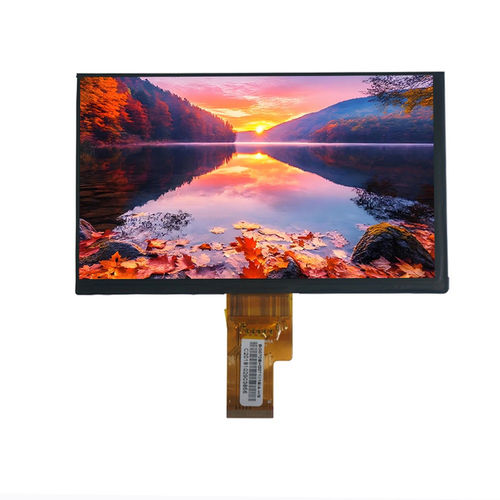

TFT LCD display module YX10121151816HE

TNcolor1024 x 600

Overview
The YX10121151816HE is a 10.1" TFT LCD display module with 1024×600 (WSVGA) resolution and an LVDS interface, designed for industrial HMI, embedded devices and professional display applications requiring stable signal transmission and long-term reliability. The 10.1" active area improves readability for operator panels, monitoring stations and graphical dashboards. Normally Black mode and LVDS signaling ensure balanced contrast and robust anti-interference performance in electrically noisy environments.

Basic Specifications
Display Size — 10.1 inch
LCD Type — TFT-LCD, Transmissive
Display Mode — Normally Black
Resolution — 1024 (RGB) × 600 (WSVGA)
Active Area — 222.72 × 125.28 mm
Outline Dimensions — 235.00 × 143.00 × 5.20 mm
Pixel Pitch — 0.2175 × 0.2088 mm
Pixel Arrangement — RGB Vertical Stripe
Viewing Direction — 6 O'clock (TN)
Interface — LVDS
Backlight — White LED

Optical Characteristics
Resolution — 1024 × 600
Contrast Ratio — 500 : 1
Luminance — 300 cd/m²
Luminance Uniformity — 80%
Viewing Angle (CR ≥ 10) — 70° / 70° / 50° / 70°
Response Time — 25 ms

Operating Conditions
Operating Temperature — -20°C to +70°C
Storage Temperature — -30°C to +80°C
Humidity — ≤ 90% RH (60°C)

Applications

• Industrial control systems
• Human Machine Interfaces (HMI)
• Embedded devices and professional displays
• Operator panels, monitoring systems and graphical control dashboards

Technical specifications

• Model: YX10121151816HE
• Brand: Yousee
• Display size: 10.1 inch
• Resolution: 1024 (RGB) × 600 (WSVGA)
• LCD type: TFT-LCD, Transmissive
• Display mode: Normally Black
• Viewing direction: 6 O'clock (TN)
• Interface: LVDS
• Active area: 222.72 × 125.28 mm
• Outline dimensions: 235.00 × 143.00 × 5.20 mm
• Pixel pitch: 0.2175 × 0.2088 mm
• Pixel arrangement: RGB Vertical Stripe
• Backlight: White LED
• Contrast ratio: 500:1
• Luminance: 300 cd/m²
• Luminance uniformity: 80%
• Viewing angle (CR ≥ 10): 70°/70°/50°/70°
• Response time: 25 ms
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)
