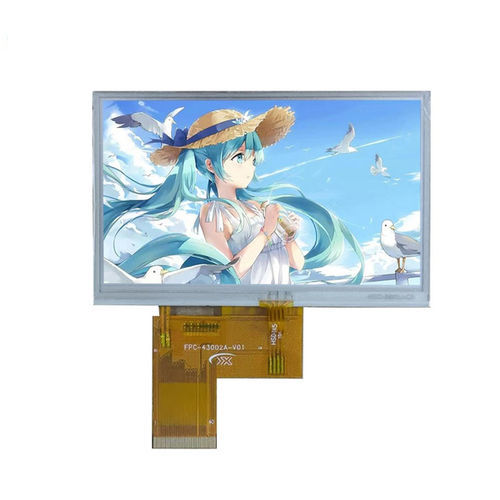

TFT LCD display module YX43011 series

colorgraphic800 x 480

Product Overview
The YX43011B is a 4.3-inch high-brightness TFT LCD display module by Yousee, featuring 800×480 (WVGA) resolution and a standard RGB interface. It is designed for industrial control panels, outdoor devices and embedded HMI systems requiring clear visibility under strong ambient light. With 800 cd/m² luminance and All-O'Clock wide viewing angle, the display delivers bright, sharp and consistent images from any direction. Driven by the ST7262 driver IC, it provides stable signal processing and reliable long-term performance for professional applications. Its compact 4.3-inch form factor and sunlight-readable brightness make the YX43011B suitable for portable equipment, vehicle systems, outdoor terminals and industrial instruments.

Basic Specifications

• Model: YX43011B
• Display Size: 4.3 inch
• LCD Type: TFT-LCD, Transmissive
• Resolution: 800 (RGB) × 480 (WVGA)
• Active Area: 95.04 × 53.86 mm
• Outline Dimensions: 105.4 × 67.15 × 3.0 mm
• Pixel Pitch: 0.1926 × 0.1926 mm
• Viewing Direction: All-O'Clock
• Driver IC: ST7262
• Interface: RGB

Optical Characteristics

• Contrast Ratio: 800 : 1
• Color Gamut: 60%
• Luminance: 800 cd/m²
• Luminance Uniformity: 80%
• Viewing Angle (CR ≥ 10): 80° (all directions)
• Response Time: 25 ms

Operating Conditions

• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)

Applications & Key Features

• Sunlight-readable high-brightness TFT suitable for outdoor environments
• Designed for industrial control panels, embedded HMI, portable and vehicle systems
• Standard RGB interface for easy integration
• Wide viewing angle (All-O'Clock) ensures consistent image from any direction
• Powered by ST7262 driver IC for stable signal processing

Technical specifications

• Model: YX43011B
• Display Size: 4.3 inch
• Resolution: 800 (RGB) × 480 (WVGA)
• Brightness: 800 cd/m² (800 nits)
• LCD Type: TFT-LCD, Transmissive
• Viewing Direction: All-O'Clock (wide viewing angle)
• Driver IC: ST7262
• Interface: RGB
• Active Area: 95.04 × 53.86 mm
• Outline Dimensions: 105.4 × 67.15 × 3.0 mm
• Pixel Pitch: 0.1926 × 0.1926 mm
• Contrast Ratio: 800 : 1
• Color Gamut: 60%
• Luminance Uniformity: 80%
• Viewing Angle (CR ≥ 10): 80° (all directions)
• Response Time: 25 ms
• Operating Temperature: -20°C ~ +70°C
• Storage Temperature: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
